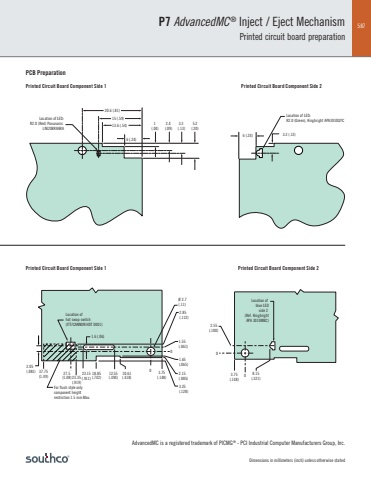

587Dimensions in millimeters (inch) unless otherwise statedP7 AdvancedMC® Inject / Eject MechanismPrinted circuit board preparation20.6 (.81)15 (.59)13.6 (.54)6 (.24)1 (.04)2.4 (.09)3.3 (.13)5.2(.20)Location of LED:R2.0 (Red) Panasonic LNJ208R8ARA3.3 (.13) 6 (.24)Location of LED:R2.0 (Green), Kingbright APA3010QYCPCB PreparationPrinted Circuit Board Component Side 1 Printed Circuit Board Component Side 2Ø 2.7 (.11)1.55(.061)01.65 (.065)2.15 (.085)3.25(.128)1.6 (.06)0 3.75(.148)10.61(.418)12.55(.494)18.85(.742)23.15(.911)27.5(1.08)Location of hot swap switch(ITT/CANNON HDT 0001)2.05 (.081)23.35(.919)37.75(1.49)For flush style onlycomponent heightrestriction 1.5 mm Max.2.85 (.112)00 3.75(.148)8.15(.321)Location of blue LEDside 2 (Ref. KingbrightAPA 3010MBC)2.55 (.100)Printed Circuit Board Component Side 1 Printed Circuit Board Component Side 2AdvancedMC is a registered trademark of PICMG® - PCI Industrial Computer Manufacturers Group, Inc.
