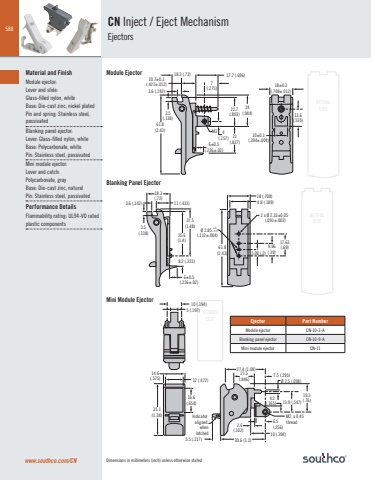

588Dimensions in millimeters (inch) unless otherwise stated10 (.394)2.6 (.102)6.5(.256)M2. x 0.45 thread5.5 (.217) 30.6 (1.2)Indicator aligned when latched13.9 (.547)19.3(.76) 4.2 (.165)Ø 2.5 (.098)7.5 (.295) 21.5(.846)27.4 (1.08) 14.6(.575) 12 (.472)35.1(1.38)16.6(.654)5 (.197)10 (.394)ACTUALSIZECN Inject / Eject Mechanism EjectorsMaterial and FinishModule ejector: Lever and slide: Glass-filled nylon, whiteBase: Die-cast zinc, nickel platedPin and spring: Stainless steel, passivatedBlanking panel ejector: Lever: Glass-filled nylon, whiteBase: Polycarbonate, whitePin: Stainless steel, passivated Mini module ejector: Lever and catch: Polycarbonate, grayBase: Die-cast zinc, naturalPin: Stainless steel, passivatedPerformance DetailsFlammability rating: UL94-VO rated plastic componentswww.southco.com/CN13.6(.535)24(.944)22.7(.893)4(.157)M321(.827) 6±0.5(.236±.02)61.8(2.43)3.5(.138)18±0.3(.708±.012)18.3 (.72) 17.7 (.696)3.6 (.142)7(.275)10.7±0.3(.421±.012)10±0.1(.394±.004)17.639.96 (.69)5.08 (.2) (.39)4.8 (.189)18 (.708)61.8(2.43)Ø 2.85 (.112±.004)+0- 0.12 x Ø 2.32±0.05 37.5 (.091±.002)(1.48)35.6(1.4)8.2 (.323)6±0.5(.236±.02)18.3(.72)3.6 (.142) 11 (.433)3.5(.138)ACTUALSIZEACTUALSIZEMini Module EjectorModule EjectorBlanking Panel EjectorEjector Part NumberModule ejector CN-10-3-ABlanking panel ejector CN-10-9-AMini module ejector CN-11
