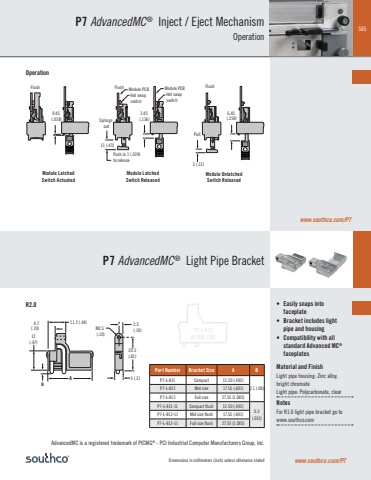

585Dimensions in millimeters (inch) unless otherwise stated www.southco.com/P7www.southco.com/P7P7 AdvancedMC® Inject / Eject MechanismOperationOperationModule LatchedSwitch ActuatedModule LatchedSwitch ReleasedModule UnlatchedSwitch ReleasedModule PCBHot swapswitch6.45 (.254)3.45 (.136)0.45 (.018) Springs outModule PCBHot swapswitchPullFlush Flush FlushPush in 1 (.039)to release11 (.43)3 (.12)Part Number Bracket Size A BP7-L-811 Compact 12.50 (.492)P7-L-812 Mid size 17.55 (.691) 2.1 (.08)P7-L-813 Full size 27.55 (1.085)P7-L-811-11 Compact flush 12.50 (.492)0.3 (.012) P7-L-812-11 Mid size flush 17.55 (.691)P7-L-813-11 Full size flush 27.55 (1.085)BA12(.47)4.7(.19)11.2 (.44)M2.5 (.10)2.5 (.10)5 (.2)20.5(.81)R2.0P7-L-813ACTUAL SIZEP7 AdvancedMC® Light Pipe Bracket• Easily snaps into faceplate• Bracket includes light pipe and housing• Compatibility with all standard Advanced MC®faceplatesMaterial and FinishLight pipe housing: Zinc alloy, bright chromateLight pipe: Polycarbonate, clearNotesFor R1.0 light pipe bracket go to www.southco.comAdvancedMC is a registered trademark of PICMG® - PCI Industrial Computer Manufacturers Group, Inc.
