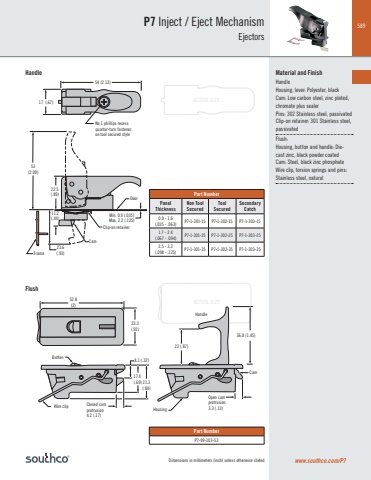

589Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZEACTUAL SIZEP7 Inject / Eject Mechanism Ejectors23.3(.92)52.8(2)17.4 (.69)8.1 (.32)36.8 (1.45)Open camprotrusion3.3 (.13)Closed camprotrusion4.2 (.17)21.3(.84)22 (.87)HandleCamHousing Wire clipButtonwww.southco.com/P753(2.09)17 (.67)54 (2.13)22.5(.89)Min. 0.9 (.035)Max. 3.2 (.125)DoorFrameClip-on retainerCamNo.1 phillips recess quarter-turn fastener, on tool secured style11.2(.44)23.6(.93)Part NumberPanel ThicknessNon Tool SecuredTool SecuredSecondary Catch0.9 - 1.6 (.035 - .063) P7-1-301-15 P7-1-302-15 P7-1-303-151.7 - 2.4 (.067 - .094) P7-1-301-25 P7-1-302-25 P7-1-303-252.5 - 3.2 (.098 - .125) P7-1-301-35 P7-1-302-35 P7-1-303-35Part NumberP7-99-103-53Material and FinishHandleHousing, lever: Polyester, blackCam: Low carbon steel, zinc plated, chromate plus sealerPins: 302 Stainless steel, passivatedClip-on retainer: 301 Stainless steel, passivatedFlush:Housing, button and handle: Diecast zinc, black powder coatedCam: Steel, black zinc phosphateWire clip, torsion springs and pins: Stainless steel, naturalHandleFlush
