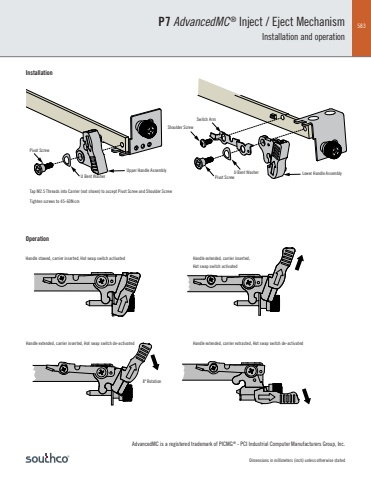

583Dimensions in millimeters (inch) unless otherwise statedP7 AdvancedMC® Inject / Eject MechanismInstallation and operationInstallationOperationAdvancedMC is a registered trademark of PICMG® - PCI Industrial Computer Manufacturers Group, Inc.Handle stowed, carrier inserted, Hot swap switch activated Handle extended, carrier inserted, Hot swap switch activatedHandle extended, carrier inserted, Hot swap switch de-activated Handle extended, carrier extracted, Hot swap switch de-activated8º RotationTap M2.5 Threads into Carrier (not shown) to accept Pivot Screw and Shoulder ScrewTighten screws to 45-60N·cmPivot ScrewPivot ScrewShoulder ScrewSwitch ArmU Bent WasherU Bent Washer Upper Handle Assembly Lower Handle Assembly
