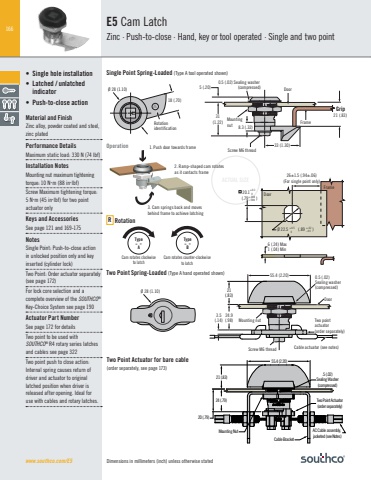

166Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZEE5 Cam LatchZinc · Push-to-close · Hand, key or tool operated · Single and two pointwww.southco.com/E5• Single hole installation• Latched / unlatched indicator• Push-to-close actionMaterial and FinishZinc alloy, powder coated and steel, zinc plated Performance DetailsMaximum static load: 330 N (74 lbf)Installation NotesMounting nut maximum tightening torque: 10 Nm (88 inlbf)Screw Maximum tightening torque: 5 Nm (45 inlbf) for two point actuator onlyKeys and AccessoriesSee page 121 and 169-175NotesSingle Point: Push-to-close action in unlocked position only and key inserted (cylinder lock)Two Point: Order actuator separately (see page 172)For lock core selection and a complete overview of the SOUTHCO®Key-Choice System see page 190Actuator Part NumberSee page 172 for detailsTwo point to be used with SOUTHCO® R4 rotary series latches and cables see page 322Two point push to close action:Internal spring causes return of driver and actuator to original latched position when driver is released after opening. Ideal foruse with cables and rotary latches.6 (.24) Max1 (.04) Min26±1.5 (.94±.06)(For single point only)FrameØ 22.5 (.89 )Door 20.1 (.79 )+0.1 0+.004 -.000+0.5 0+.02-.0018 (.70)Ø 28 (1.10)Grip33 (1.30)8.3 (.32)31(1.22)5 (.20)0.5 (.02) Sealing washer (compressed)Mountingnut21 (.83)FrameDoorARotation identificationScrew M6 threadType“A”Type“B”Cam rotates clockwiseto latchCam rotates counter-clockwiseto latchØ 28 (1.10)24.9(.98) Mounting nutDoorCable actuator (see notes)3.5(.14)0.5 (.02) Sealing washer(compressed)55.4 (2.20)21(.83)Two pointactuator (order separately)Screw M6 threadSingle Point Spring-Loaded (Type A tool operated shown)Two Point Spring-Loaded (Type A hand operated shown)Two Point Actuator for bare cable(order separately, see page 173)1. Push door towards frame3. Cam springs back and moves behind frame to achieve latching2. Ramp-shaped cam rotates as it contacts frameOperation21 (.83)24 (.79)20 (.79)55.4 (2.20).5 (.02)Sealing Washer(compressed)Cable BracketMounting NutTwo Point Actuator(order separately)AC Cable assembly, jacketed (see Notes)R Rotation
