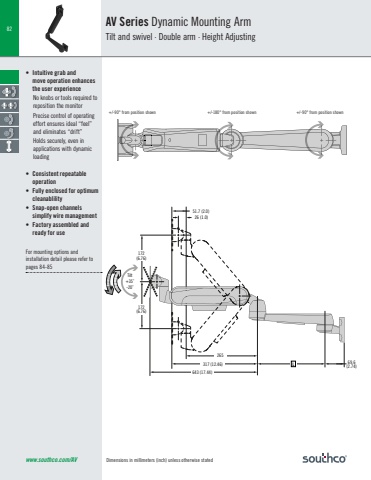

Dimensions in millimeters (inch) unless otherwise statedTilt+35˚-20˚ ReverseForward69.6(2.74) 317 (12.46) L265643 (17.44)172(6.76)172(6.76)51.7 (2.0)26 (1.0)82www.southco.com/AV• Intuitive grab and move operation enhances the user experience No knobs or tools required to reposition the monitor Precise control of operating effort ensures ideal “feel” and eliminates “drift”Holds securely, even in applications with dynamic loading• Consistent repeatable operation• Fully enclosed for optimum cleanablility• Snap-open channels simplify wire management• Factory assembled and ready for useFor mounting options and installation detail please refer to pages 84-85AV Series Dynamic Mounting ArmTilt and swivel · Double arm · Height Adjusting+/-90° from position shown +/-180° from position shown +/-90° from position shown
