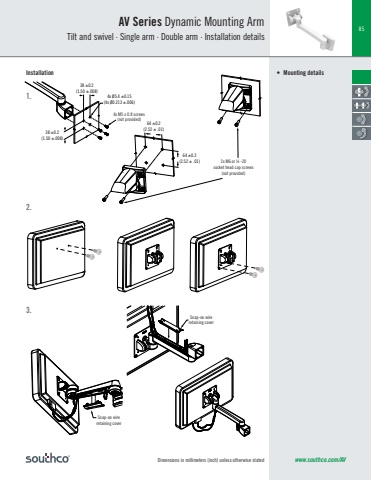

Dimensions in millimeters (inch) unless otherwise stated85www.southco.com/AV4x Ø5.4 ±0.15(4x Ø0.213 ±.006)38 ±0.2(1.50 ±.008)38 ±0.2(1.50 ±.008)64 ±0.2(2.52 ± .01)64 ±0.2(2.52 ± .01)1.2.3.Installation • Mounting detailsAV Series Dynamic Mounting ArmTilt and swivel · Single arm · Double arm · Installation details 2x M6 or ¼ -20 socket head cap screws(not provided)Snap-on wireretaining coverSnap-on wireretaining cover4x M5 x 0.8 screws(not provided)
