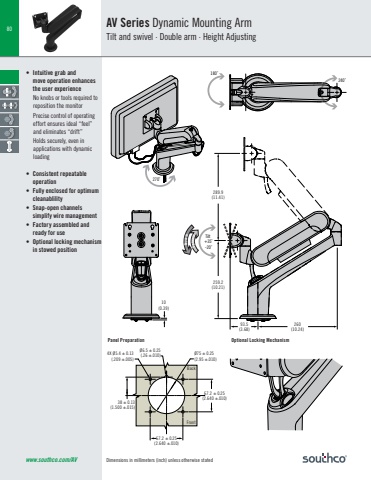

Dimensions in millimeters (inch) unless otherwise stated289.9(11.41)259.2(10.21)10(0.39)260(10.24)93.5(3.68)240˚180˚270˚Tilt +35˚-20˚ ReverseForward 38 ± 0.13(1.500 ±.015)Ø6.5 ± 0.25(.26 ±.010)FrontBackØ75 ± 0.25(2.95 ±.010)4X Ø5.4 ± 0.13(.209 ±.005)67.2 ± 0.25(2.640 ±.010)67.2 ± 0.25(2.640 ±.010)80www.southco.com/AVAV Series Dynamic Mounting ArmTilt and swivel · Double arm · Height Adjusting• Intuitive grab and move operation enhances the user experience No knobs or tools required to reposition the monitor Precise control of operating effort ensures ideal “feel” and eliminates “drift”Holds securely, even in applications with dynamic loading• Consistent repeatable operation• Fully enclosed for optimum cleanablility• Snap-open channels simplify wire management• Factory assembled and ready for use• Optional locking mechanism in stowed positionPanel Preparation Optional Locking Mechanism
