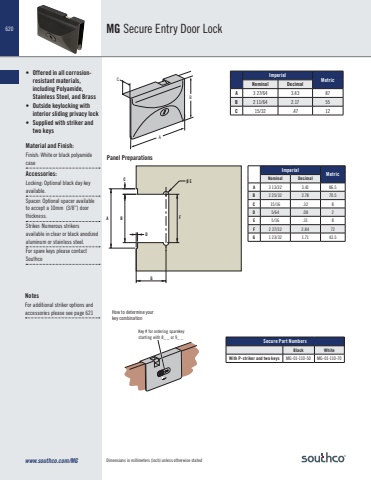

620 MG Secure Entry Door Lock• Offered in all corrosionresistant materials, including Polyamide, Stainless Steel, and Brass• Outside keylocking with interior sliding privacy lock• Supplied with striker and two keysMaterial and Finish:Finish: White or black polyamide caseAccessories:Locking: Optional black day key available.Spacer: Optional spacer available to accept a 10mm (3/8”) door thickness.Striker: Numerous strikers available in clear or black anodized aluminum or stainless steel.For spare keys please contact SouthcoPanel PreparationsØ EA BCDFGTo open:Turn counter clockwise 1/6Insert key horizontallyTo lock:To open:Turn counter clokwise 1/6Insert key horizontallyTo lock:Save this instructioncard and spare key# for future reference.Save this instructioncard and spare key# for future reference.Key # for ordering sparekeyKey # for ordering sparekey starting with 8_ _ or 9_ _starting with 8_ _ or 9_ _Flush - Oval M/S Flush OvalM/S Offshore flush mounted M/S Offshore mortise mountedKey # for ordering sparekeystarting with 8_ _ or 9_ _For spare keys pleasecontact Southco Within US: info@southco.com Outside US: mobella@southco.com How to determine your key combinationM/S OffshoreM/S Flush M/S SecureM/S TalonHow to determine your key combinationCBASecure Part NumbersBlack WhiteWith P-striker and two keys MG-01-110-50 MG-01-110-70Imperial MetricNominal DecimalA 3 27/64 3.43 87B 2 11/64 2.17 55C 15/32 .47 12Imperial MetricNominal DecimalA 3 13/32 3.41 86.5B 2 25/32 2.78 70.5C 15/16 .32 8D 5/64 .08 2E 5/16 .31 8F 2 27/32 2.84 72G 1 23/32 1.71 43.5www.southco.com/MGNotesFor additional striker options and accessories please see page 621Dimensions in millimeters (inch) unless otherwise stated
