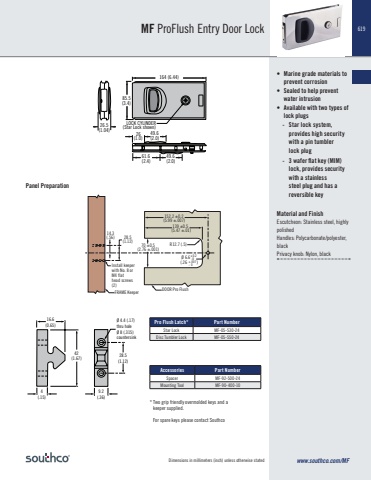

MF 619 ProFlush Entry Door Lock• Marine grade materials to prevent corrosion• Sealed to help prevent water intrusion• Available with two types of lock plugs- Star lock system, provides high security with a pin tumbler lock plug- 3 wafer flat key (MIM) lock, provides security with a stainless steel plug and has a reversible keyMaterial and FinishEscutcheon: Stainless steel, highly polishedHandles: Polycarbonate/polyester, blackPrivacy knob: Nylon, black172 (6.78)108(4.3)26.5(1.0) 26(1.0)61.6 (2.4)49.6(2.0)49.6(2.0) 11 (.433) to 13 (.513)withSPACER9 (.354)LOCK CYLINDER(Star Lock shown)164 (6.44)85.5(3.4)26.5(1.04) 26(1.0)61.6 (2.4)49.6(2.0) 49.6(2.0)LOCK CYLINDER(Star Lock shown) 152.2 ±0.2(5.99 ±.007) 139 ±0.5(5.47 ±.01) R12.7 (.5) Ø 6.6 (.26 )+0.2 -0+.007 - 070 ±0.5(2.76 ±.001) DOOR Pro Flush FRAME Keeper 28.5 (1.12)Install keeperwith No. 8 orM4 flat head screws(2) 14.3 (.56)172 (6.78)108(4.3)26.5(1.0) 26(1.0)61.6 (2.4)49.6(2.0)49.6(2.0) 11 (.433) to 13 (.513)withSPACER9 (.354)LOCK CYLINDER(Star Lock shown)164 (6.44)85.5(3.4)26.5(1.04) 26(1.0)61.6 (2.4)49.6(2.0) 49.6(2.0)LOCK CYLINDER(Star Lock shown) 152.2 ±0.2(5.99 ±.007) 139 ±0.5(5.47 ±.01) R12.7 (.5) Ø 6.6 (.26 )+0.2 -0+.007 - 070 ±0.5(2.76 ±.001) DOOR Pro Flush FRAME Keeper 28.5 (1.12)Install keeperwith No. 8 orM4 flat head screws(2) 14.3 (.56)Panel Preparation* Two grip friendly overmolded keys and a keeper supplied.For spare keys please contact Southco16.6(0.65)4(.15)9.2(.36)28.5(1.12)42(1.67)Ø 4.4 (.17)thru holeØ 8 (.315)countersinkwww.southco.com/MFPro Flush Latch* Part NumberStar Lock MF-05-530-24Disc Tumbler Lock MF-05-550-24Accessories Part NumberSpacer MF-92-500-24Mounting Tool MF-90-400-10Dimensions in millimeters (inch) unless otherwise stated
