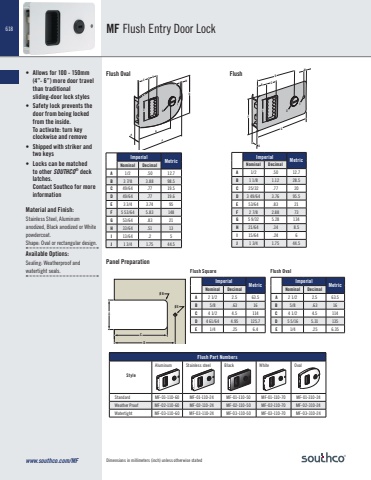

618 MF Flush Entry Door LockFlush Oval FlushDHCJ EIGGCDBHJAFBDHCJ EIGGCDBHJAFB• Allows for 100 - 150mm (4”- 6”) more door travel than traditional sliding-door lock styles• Safety lock prevents the door from being locked from the inside. To activate: turn key clockwise and remove• Shipped with striker and two keys• Locks can be matched to other SOUTHCO® deck latches.Contact Southco for more informationMaterial and Finish:Stainless Steel, Aluminum anodized, Black anodized or White powdercoat.Shape: Oval or rectangular design.Available Options:Sealing: Weatherproof and watertight seals.AØ BCDØ EPanel PreparationFlush Square Flush OvalImperial MetricNominal DecimalA 1/2 .50 12.7B 3 7/8 3.88 98.5C 49/64 .77 19.5D 49/64 .77 19.6E 3 3/4 3.74 95F 5 53/64 5.83 148G 53/64 .83 21H 33/64 .51 13I 13/64 .2 5J 1 3/4 1.75 44.5Flush Part NumbersStyleAluminum Stainless steel Black White OvalStandard MF-01-110-60 MF-01-110-24 MF-01-110-50 MF-01-110-70 MF-01-310-24Weather Proof MF-02-110-60 MF-02-110-24 MF-02-110-50 MF-02-110-70 MF-02-310-24Watertight MF-03-110-60 MF-03-110-24 MF-03-110-50 MF-03-110-70 MF-03-310-24Imperial MetricNominal DecimalA 1/2 .50 12.7B 1 1/8 1.12 28.5C 25/32 .77 20D 3 49/64 3.76 95.5E 53/64 .83 21F 2 7/8 2.88 73G 5 9/32 5.28 134H 21/64 .34 8.5I 15/64 .24 6J 1 3/4 1.75 44.5Imperial MetricNominal DecimalA 2 1/2 2.5 63.5B 5/8 .63 16C 4 1/2 4.5 114D 4 61/64 4.95 125.7E 1/4 .25 6.4Imperial MetricNominal DecimalA 2 1/2 2.5 63.5B 5/8 .63 16C 4 1/2 4.5 114D 5 5/16 5.31 135E 1/4 .25 6.35www.southco.com/MF Dimensions in millimeters (inch) unless otherwise stated
