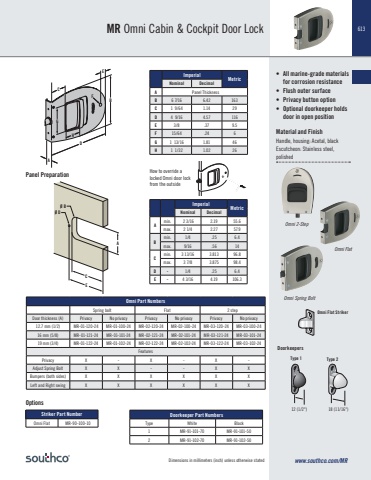

MR 613 Omni Cabin & Cockpit Door Lockwww.southco.com/MRCEBFGHDAHow to override a locked door from the outsideM/S CompactM/S Offshore flush mounted M/S Offshore mortise mountedM/S OffshoreM/S McCoy M/S OmniM/S TalonM/S Talon without keylockingHow to override a locked Omni door lock from the outsideOmni 2-StepOmni FlatOmni Spring Bolt Omni Part NumbersSpring bolt Flat 2 stepDoor thickness (A) Privacy No privacy Privacy No privacy Privacy No privacy12.7 mm (1/2) MR-01-120-24 MR-01-100-24 MR-02-120-24 MR-02-100-24 MR-03-120-24 MR-03-100-2416 mm (5/8) MR-01-121-24 MR-01-101-24 MR-02-121-24 MR-02-101-24 MR-03-121-24 MR-03-101-2419 mm (3/4) MR-01-122-24 MR-01-102-24 MR-02-122-24 MR-02-102-24 MR-03-122-24 MR-03-102-24FeaturesPrivacy X - X - X -Adjust Spring Bolt X X - - X XBumpers (both sides) X X X X X XLeft and Right swing X X X X X X• All marine-grade materials for corrosion resistance• Flush outer surface• Privacy button option• Optional doorkeeper holds door in open positionMaterial and FinishHandle, housing: Acetal, blackEscutcheon: Stainless steel, polishedImperial MetricNominal DecimalA Panel ThicknessB 6 7/16 6.42 163C 1 9/64 1.14 29D 4 9/16 4.57 116E 3/8 .37 9.5F 15/64 .24 6G 1 13/16 1.81 46H 1 1/32 1.02 26Imperial MetricNominal DecimalAmin. 2 3/16 2.19 55.6max. 2 1/4 2.27 57.9Bmin. 1/4 .25 6.4max. 9/16 .56 14Cmin. 3 13/16 3.813 96.8max. 3 7/8 3.875 98.4D - 1/4 .25 6.4E - 4 3/16 4.19 106.3Panel PreparationECAØ DØ BOptions Doorkeeper Part NumbersType White Black1 MR-91-101-70 MR-91-101-502 MR-91-102-70 MR-91-102-50Striker Part NumberOmni Flat MR-90-100-10Type 1 Type 2 DOORKEEPER PART NUMBERSWhite Black 1 2MR-91-101-70MR-91-102-70MR-91-101-50MR-91-102-5012 (1/2\18 (11/16\TypeOMNI flat MR-90-100-10STRIKER PART NUMBERType 1 Type 2 DOORKEEPER PART NUMBERSWhite Black 1 2MR-91-101-70MR-91-102-70MR-91-101-50MR-91-102-5012 (1/2\18 (11/16\TypeOmni Flat StrikerType 1 Type 2DoorkeepersDimensions in millimeters (inch) unless otherwise stated
