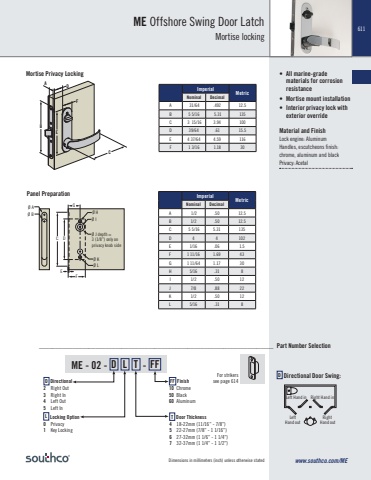

611ME - 02 - D L T - FFD Directional2 Right Out3 Right In4 Left Out5 Left InT Door Thickness4 18-22mm (11/16” - 7/8”)5 22-27mm (7/8” - 1 1/16”)6 27-32mm (1 1/6” - 1 1/4”)7 32-37mm (1 1/4” - 1 1/2”)L Locking Option0 Privacy1 Key LockingFF Finish10 Chrome50 Black60 AluminumLeftHand outLeft Hand inRight Hand outRight Hand inMortise Privacy LockingPanel PreparationABCDEFØ HØ IØ KØ LØ J depth = 3 (1/8”) only on privacy knob sideØ BØ AC DEGFME Offshore Swing Door LatchMortise lockingD Directional Door Swing: _______________________________________________________________________ Part Number SelectionImperial MetricNominal DecimalA 31/64 .492 12.5B 5 5/16 5.31 135C 3 15/16 3.94 100D 39/64 .61 15.5E 4 37/64 4.59 116F 1 3/16 1.18 30Imperial MetricNominal DecimalA 1/2 .50 12.5B 1/2 .50 12.5C 5 5/16 5.31 135D 4 4 102E 1/16 .06 1.5F 1 11/16 1.69 43G 1 11/64 1.17 30H 5/16 .31 8I 1/2 .50 12J 7/8 .88 22K 1/2 .50 12L 5/16 .31 8www.southco.com/ME• All marine-grade materials for corrosion resistance• Mortise mount installation• Interior privacy lock with exterior overrideMaterial and FinishLock engine: AluminumHandles, escutcheons finish: chrome, aluminum and blackPrivacy: AcetalFor strikers see page 614 Dimensions in millimeters (inch) unless otherwise stated
