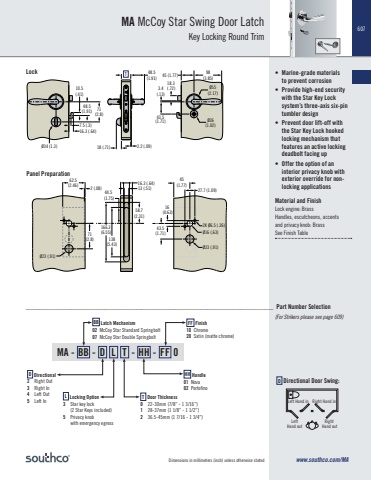

607MA - BB - D L T - HH - FF 0MA McCoy Star Swing Door LatchKey Locking Round Trim• Marine-grade materials to prevent corrosion• Provide high-end security with the Star Key Lock system’s three-axis six-pin tumbler design• Prevent door lift-off with the Star Key Lock hooked locking mechanism that features an active locking deadbolt facing up• Offer the option of an interior privacy knob with exterior override for nonlocking applicationsMaterial and FinishLock engine: BrassHandles, escutcheons, accents and privacy knob: BrassSee Finish Table10.5(.41)71(2.8)48.5(1.91)3.4(.13)45 (1.77) 98(3.85)43.5(1.71)18.3(.72)Ø26(1.02)Ø55(2.17)48.5(1.91)Ø34 (1.3)16.3 (.64)18 (.71) 2.2 (.09)7.5 (.3)Inside escutcheonLatch moduleLock moduleWasher Drive barHandleAccentSet screw #10 Keyway assemblyOutside escutcheonInterior privacy knob assemblyT Lock___________________________________________________________________________ Part Number SelectionFF Finish10 Chrome20 Satin (matte chrome)D Directional2 Right Out3 Right In4 Left Out5 Left InT Door Thickness0 22-30mm (7/8” - 1 3/16”)1 28-37mm (1 1/8” - 1 1/2”)2 36.5-45mm (1 7/16 - 1 3/4”)L Locking Option3 Star key lock (2 Star Keys included)5 Privacy knob with emergency egressBB Latch Mechanism02 McCoy Star Standard Springbolt07 McCoy Star Double SpringboltHH Handle01 Nova02 PortofinoLeftHand outLeft Hand inRight Hand outRight Hand inPanel Preparation62.5(2.46)Ø23 (.91)2 (.08)71(2.8)166.3 (6.55)138(5.43)16.3 (.64)13 (.51)58.7(2.31)43.5(1.71)16 (0.63)45(1.77)27.7 (1.09)2X Ø6.5 (.26) Ø16 (.63)Ø23 (.91)44.5 (1.75)D Directional Door Swing:www.southco.com/MA(For Strikers please see page 609)Dimensions in millimeters (inch) unless otherwise stated
