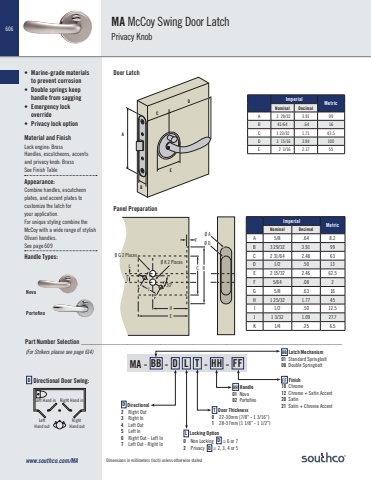

606MA - BB - D L T - HH - FFMA McCoy Swing Door LatchPrivacy Knob• Marine-grade materials to prevent corrosion• Double springs keep handle from sagging• Emergency lock override• Privacy lock optionMaterial and FinishLock engine: BrassHandles, escutcheons, accents and privacy knob: BrassSee Finish TableAppearance:Combine handles, escutcheon plates, and accent plates to customize the latch for your application.For unique styling combine the McCoy with a wide range of stylish Olivari handles. See page 609Handle Types:NovaPortofinoDoor LatchPanel PreparationABCDELeftHand outLeft Hand inRight Hand outRight Hand inFF Finish10 Chrome12 Chrome + Satin Accent20 Satin21 Satin + Chrome Accent D Directional2 Right Out3 Right In4 Left Out5 Left In6 Right Out - Left In7 Left Out - Right InT Door Thickness0 22-30mm (7/8” - 1 3/16”)1 28-37mm (1 1/8” - 1 1/2”)L Locking Option0 Non Locking D = 6 or 72 Privacy D = 2, 3, 4 or 5BB Latch Mechanism01 Standard Springbolt08 Double SpringboltHH Handle01 Nova02 Portofino(For Strikers please see page 614)Imperial MetricNominal DecimalA 3 29/32 3.91 99B 41/64 .64 16C 1 23/32 1.71 43.5D 3 15/16 3.94 100E 2 3/16 2.17 5530ºØ K 2 PlacesØ G 2 PlacesØ AØ DC BHJEFLIPart Number Selection _______________________________________________________________________________D Directional Door Swing:Imperial MetricNominal DecimalA 5/8 .64 8.2B 3 29/32 3.91 99C 2 31/64 2.48 63D 1/2 .50 13E 2 15/32 2.46 62.5F 5/64 .08 2G 5/8 .63 16H 1 25/32 1.77 45I 1/2 .50 12.5J 1 3/32 1.09 27.7K 1/4 .25 6.5www.southco.com/MA Dimensions in millimeters (inch) unless otherwise stated
