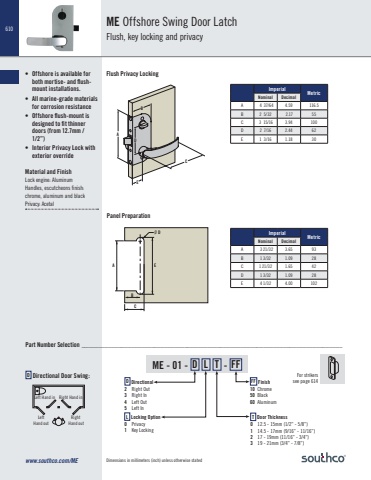

610ME - 01 - D L T - FFME Offshore Swing Door LatchFlush, key locking and privacyD Directional Door Swing:Part Number Selection _______________________________________________________________________________D Directional2 Right Out3 Right In4 Left Out5 Left InT Door Thickness0 12.5 - 15mm (1/2” - 5/8”)1 14.5 - 17mm (9/16” - 11/16”)2 17 - 19mm (11/16” - 3/4”)3 19 - 21mm (3/4” - 7/8”)L Locking Option0 Privacy1 Key LockingFF Finish10 Chrome50 Black60 Aluminum• Offshore is available for both mortise- and flushmount installations.• All marine-grade materials for corrosion resistance• Offshore flush-mount is designed to fit thinner doors (from 12.7mm / 1/2”)• Interior Privacy Lock with exterior overrideMaterial and FinishLock engine: AluminumHandles, escutcheons finish: chrome, aluminum and blackPrivacy: AcetalImperial MetricNominal DecimalA 4 37/64 4.59 116.5B 2 5/32 2.17 55C 3 15/16 3.94 100D 2 7/16 2.44 62E 1 3/16 1.18 30LeftHand outLeft Hand inRight Hand outRight Hand inFor strikers see page 614ABCDEwww.southco.com/MEFlush Privacy LockingImperial MetricNominal DecimalA 3 21/32 3.65 93B 1 3/32 1.09 28C 1 21/32 1.65 42D 1 3/32 1.09 28E 4 1/32 4.00 102EØ DCBAPanel PreparationDimensions in millimeters (inch) unless otherwise stated
