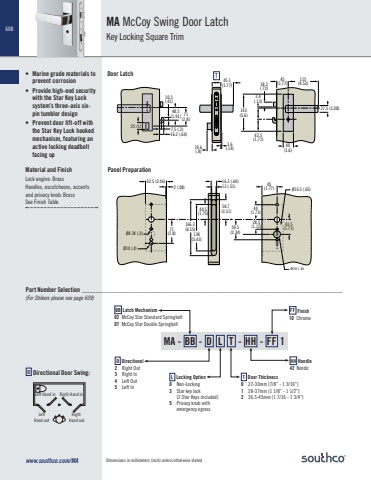

608MA - BB - D L T - HH - FF 1MA McCoy Swing Door LatchKey Locking Square Trim10.5(.41)71(2.8)45.1(1.77)3.4(.13)45(1.77)115(4.53)43.5(1.71)40(1.6)18.3(.72)48.5(1.91)16.2 (.64)19.6(.8)25 (1)3.6(.14)7.5 (.3)143(5.6)27.5 (1.08)T62.5 (2.46)Ø10 (.4)2 (.08)71(2.8)166.3 (6.55)138(5.43)16.3 (.64)13 (.51)58.7 (2.31) 44.5(1.75)43.5(1.71)44(1.73)45(1.77)28.5(1.12)Ø16.5 (.65)Ø20 (.8)59.5(2.34) Ø8 3X (.3)Panel PreparationDoor LatchLeftHand outLeft Hand inRight Hand outRight Hand inFF Finish10 ChromeD Directional2 Right Out3 Right In4 Left Out5 Left InT Door Thickness0 22-30mm (7/8” - 1 3/16”)1 28-37mm (1 1/8” - 1 1/2”)2 36.5-45mm (1 7/16 - 1 3/4”)L Locking Option0 Non-Locking3 Star key lock(2 Star Keys included)5 Privacy knob with emergency egressBB Latch Mechanism02 McCoy Star Standard Springbolt07 McCoy Star Double SpringboltHH Handle42 NordicPart Number Selection _______________________________________________________________________________D Directional Door Swing:• Marine grade materials to prevent corrosion• Provide high-end security with the Star Key Lock system’s three-axis sixpin tumbler design• Prevent door lift-off with the Star Key Lock hooked mechanism, featuring an active locking deadbolt facing upMaterial and FinishLock engine: BrassHandles, escutcheons, accents and privacy knob: BrassSee Finish Table(For Strikers please see page 609)www.southco.com/MA Dimensions in millimeters (inch) unless otherwise stated
