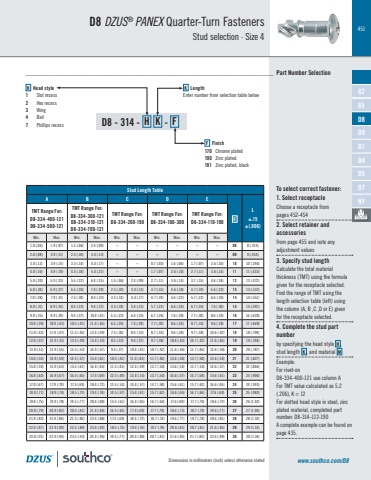

451Dimensions in millimeters (inch) unless otherwise statedD8 DZUS® PANEX Quarter-Turn FastenersStud selection · Size 4Stud Length TableA B C D EKL±.15 ±(.006)TMT Range For:D8-334-400-121D8-334-500-121TMT Range For:D8-334-300-121D8-334-310-121D8-334-700-121TMT Range For:D8-334-200-190TMT Range For:D8-334-100-300TMT Range For:D8-334-110-190Min. Max. Min. Max. Min. Max. Min. Max. Min. Max.1.0 (.04) 1.9 (.07) 1.5 (.06) 2.4 (.09) ~ ~ ~ ~ ~ ~ 08 8 (.315)2.0 (.08) 2.9 (.11) 2.5 (.10) 3.4 (.13) ~ ~ ~ ~ ~ ~ 09 9 (.354)3.0 (.12) 3.9 (.15) 3.5 (.14) 4.4 (.17) ~ ~ 0.7 (.03) 1.6 (.06) 1.7 (.07) 2.6 (.10) 10 10 (.394)4.0 (.16) 4.9 (.19) 4.5 (.18) 5.4 (.21) ~ ~ 1.7 (.07) 2.6 (.10) 2.7 (.11) 3.6 (.14) 11 11 (.433)5.0 (.20) 5.9 (.23) 5.5 (.22) 6.4 (.25) 1.5 (.06) 2.4 (.09) 2.7 (.11) 3.6 (.14) 3.7 (.15) 4.6 (.18) 12 12 (.472)6.0 (.24) 6.9 (.27) 6.5 (.26) 7.4 (.29) 2.5 (.10) 3.4 (.13) 3.7 (.15) 4.6 (.18) 4.7 (.19) 5.6 (.22) 13 13 (.512)7.0 (.28) 7.9 (.31) 7.5 (.30) 8.4 (.33) 3.5 (.14) 4.4 (.17) 4.7 (.19) 5.6 (.22) 5.7 (.22) 6.6 (.26) 14 14 (.551)8.0 (.31) 8.9 (.35) 8.5 (.33) 9.4 (.37) 4.5 (.18) 5.4 (.21) 5.7 (.22) 6.6 (.26) 6.7 (.26) 7.6 (.30) 15 15 (.591)9.0 (.35) 9.9 (.39) 9.5 (.37) 10.4 (.41) 5.5 (.22) 6.4 (.25) 6.7 (.26) 7.6 (.30) 7.7 (.30) 8.6 (.34) 16 16 (.630)10.0 (.39) 10.9 (.43) 10.5 (.41) 11.4 (.45) 6.5 (.26) 7.4 (.29) 7.7 (.30) 8.6 (.34) 8.7 (.34) 9.6 (.38) 17 17 (.669)11.0 (.43) 11.9 (.47) 11.5 (.45) 12.4 (.49) 7.5 (.30) 8.4 (.33) 8.7 (.34) 9.6 (.38) 9.7 (.38) 10.6 (.42) 18 18 (.709)12.0 (.47) 12.9 (.51) 12.5 (.49) 13.4 (.53) 8.5 (.33) 9.4 (.37) 9.7 (.38) 10.6 (.42) 10.7 (.42) 11.6 (.46) 19 19 (.748)13.0 (.51) 13.9 (.55) 13.5 (.53) 14.4 (.57) 9.5 (.37) 10.4 (.41) 10.7 (.42) 11.6 (.46) 11.7 (.46) 12.6 (.50) 20 20 (.787)14.0 (.55) 14.9 (.59) 14.5 (.57) 15.4 (.61) 10.5 (.41) 11.4 (.45) 11.7 (.46) 12.6 (.50) 12.7 (.50) 13.6 (.54) 21 21 (.827)15.0 (.59) 15.9 (.63) 15.5 (.61) 16.4 (.65) 11.5 (.45) 12.4 (.49) 12.7 (.50) 13.6 (.54) 13.7 (.54) 14.6 (.57) 22 22 (.866)16.0 (.63) 16.9 (.67) 16.5 (.65) 17.4 (.69) 12.5 (.49) 13.4 (.53) 13.7 (.54) 14.6 (.57) 14.7 (.58) 15.6 (.61) 23 23 (.906)17.0 (.67) 17.9 (.70) 17.5 (.69) 18.4 (.72) 13.5 (.53) 14.4 (.57) 14.7 (.58) 15.6 (.61) 15.7 (.62) 16.6 (.65) 24 24 (.945)18.0 (.71) 18.9 (.74) 18.5 (.73) 19.4 (.76) 14.5 (.57) 15.4 (.61) 15.7 (.62) 16.6 (.65) 16.7 (.66) 17.6 (.69) 25 25 (.984)19.0 (.75) 19.9 (.78) 19.5 (.77) 20.4 (.80) 15.5 (.61) 16.4 (.65) 16.7 (.66) 17.6 (.69) 17.7 (.70) 18.6 (.73) 26 26 (1.02)20.0 (.79) 20.9 (.82) 20.5 (.81) 21.4 (.84) 16.5 (.65) 17.4 (.69) 17.7 (.70) 18.6 (.73) 18.7 (.74) 19.6 (.77) 27 27 (1.06)21.0 (.83) 21.9 (.86) 21.5 (.85) 22.4 (.88) 17.5 (.69) 18.4 (.72) 18.7 (.74) 19.6 (.77) 19.7 (.78) 20.6 (.81) 28 28 (1.10)22.0 (.87) 22.9 (.90) 22.5 (.89) 23.4 (.92) 18.5 (.73) 19.4 (.76) 19.7 (.78) 20.6 (.81) 20.7 (.81) 21.6 (.85) 29 29 (1.14)23.0 (.91) 23.9 (.94) 23.5 (.93) 24.4 (.96) 19.5 (.77) 20.4 (.80) 20.7 (.81) 21.6 (.85) 21.7 (.85) 22.6 (.89) 30 30 (1.18)D8 - 314 - H K - FH Head style1 Slot recess2 Hex recess3 Wing4 Bail7 Phillips recessF Finish170 Chrome plated190 Zinc plated191 Zinc plated, blackK LengthEnter number from selection table belowwww.southco.com/D8___________________________________________________________________________ Part Number SelectionTo select correct fastener:1. Select receptacleChoose a receptacle from pages 452-4542. Select retainer and accessoriesfrom page 455 and note any adjustment values3. Specify stud lengthCalculate the total material thickness (TMT) using the formula given for the receptacle selected.Find the range of TMT using the length selection table (left) using the column (A, B ,C ,D or E) given for the receptacle selected.4. Complete the stud part numberby specifying the head style H , stud length K , and material MExample: For rivet-on D8-334-400-121 use column AFor TMT value calculated as 5.2 (.206), K = 12For slotted head style in steel, zinc plated material, completed part number: D8-314-112-190A complete example can be found on page 435.D1D4D5D7NY82D8D985
