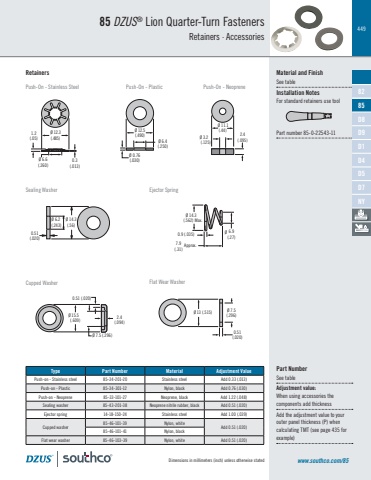

449Dimensions in millimeters (inch) unless otherwise stated85 DZUS® Lion Quarter-Turn FastenersRetainers · Accessories www.southco.com/85Material and FinishSee tableInstallation NotesFor standard retainers use tool Part number 85-0-22543-11Sealing Washer Ejector SpringØ 12.3(.485)0.3(.013)1.2(.05)Ø 6.6(.260)Ø 12.5(.490)Ø 6.4(.250)Ø 0.76(.030)3.2(.125)Ø 2.4(.095)Ø 11.1(.44)Ø 14.3(.56)Ø 6.2 (.243)0.51(.020)6.9(.27)Ø14.3(.562) Max.Ø0.9 (.035)7.9(.31) Approx.Ø13 (.515) Ø 7.5(.296)0.51(.020)15.5(.609)Ø 7.5 (.296)Ø 2.4(.094)0.51 (.020)Cupped Washer Flat Wear WasherType Part Number Material Adjustment ValuePush-on - Stainless steel 85-34-201-20 Stainless steel Add 0.33 (.013)Push-on - Plastic 85-34-301-12 Nylon, black Add 0.76 (.030)Push-on - Neoprene 85-33-101-27 Neoprene, black Add 1.22 (.048)Sealing washer 85-43-201-38 Neoprene nitrile rubber, black Add 0.51 (.020)Ejector spring 14-18-150-24 Stainless steel Add 1.00 (.039)Cupped washer85-46-101-39 Nylon, white Add 0.51 (.020)85-46-101-41 Nylon, blackFlat wear washer 85-46-103-39 Nylon, white Add 0.51 (.020)Part NumberSee tableAdjustment value: When using accessories the components add thickness Add the adjustment value to your outer panel thickness (P) when calculating TMT (see page 435 for example)Push-On - Stainless Steel Push-On - Plastic Push-On - NeopreneRetainersD1D4D5D7NY82D8D985
