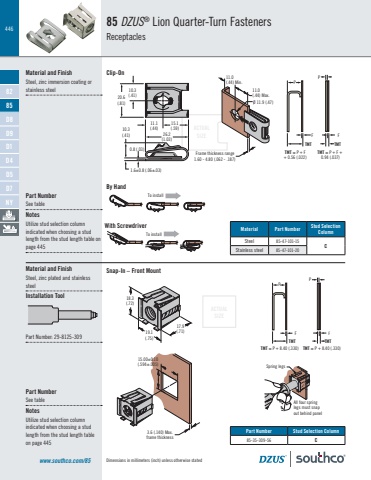

446Dimensions in millimeters (inch) unless otherwise statedACTUALSIZEACTUALSIZE85 DZUS® Lion Quarter-Turn FastenersReceptaclesMaterial and Finish Clip-OnSteel, zinc immersion coating or stainless steel26.2(1.03)15.1(.59)11.1(.44)0.8 (.03)10.3(.41)1.6±0.8 (.06±.03)10.3(.41) 20.6(.81) Ø 11.9 (.47)11.0(.44) Max.11.0(.44) Min.Frame thickness range 1.60 - 4.80 (.062 - .187)To installTo installTo installTo installTMT = P + F + 0.94 (.037)F FPPTMT TMTTMT = P + F + 0.56 (.022) Material and FinishSteel, zinc plated and stainless steelInstallation ToolPart Number: 29-8125-309Snap-In – Front MountTMT = P + 8.40 (.330)F FPPTMT TMTTMT = P + 8.40 (.330) 18.3(.72)19.1(.75)17.9(.71)15.00±0.10(.594±.005)3.6 (.140) Max.frame thicknessSpring legsAll four springlegs must snapout behind panelwww.southco.com/85By HandWith ScrewdriverPart NumberSee tableNotesUtilize stud selection column indicated when choosing a stud length from the stud length table on page 445Part Number Stud Selection Column 85-35-309-56 CMaterial Part Number Stud Selection Column Steel 85-47-101-15CStainless steel 85-47-101-20Part NumberSee tableNotesUtilize stud selection column indicated when choosing a stud length from the stud length table on page 4458285D8D9D1D4D5D7NY
