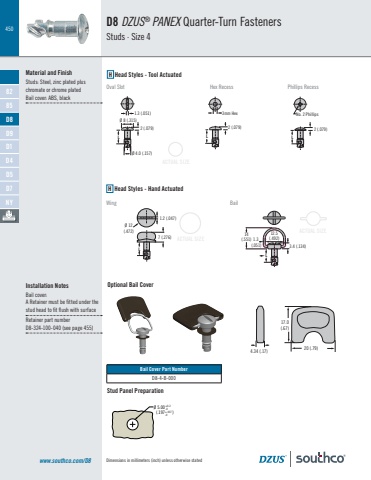

450Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZEACTUAL SIZEACTUAL SIZED8 DZUS® PANEX Quarter-Turn FastenersStuds · Size 4Material and FinishStuds: Steel, zinc plated plus chromate or chrome platedBail cover: ABS, black1.3 (.051)Ø 8 (.315)Ø 4.0 (.157)2 (.079)L7 (.276)Ø 12(.472)L1.2 (.047)14(.551)12.51.3 (.492)(.051) 3.4 (.134)LØ 5.00 (.197 )+0.2-0+.007-02 (.079)No. 2 Phillips L3mm Hex2 (.079)LH Head Styles - Tool ActuatedOval Slot Hex Recess Phillips RecessH Head Styles - Hand ActuatedWing BailStud Panel Preparationwww.southco.com/D8Optional Bail Cover4.34 (.17)17.0(.67)20 (.79)Installation NotesBail cover:A Retainer must be fitted under the stud head to fit flush with surfaceRetainer part number D8-324-100-040 (see page 455)Bail Cover Part NumberD8-4-B-0008285D8D9D1D4D5D7NY
