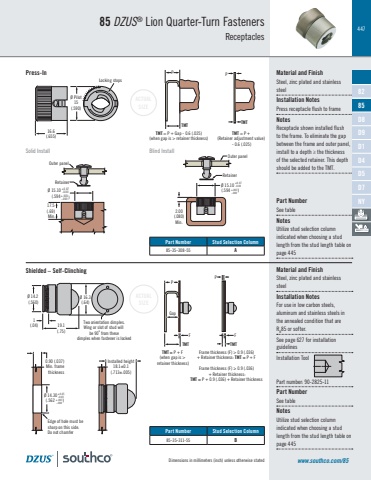

447Dimensions in millimeters (inch) unless otherwise statedACTUALSIZEACTUALSIZE85 DZUS® Lion Quarter-Turn FastenersReceptaclesMaterial and FinishSteel, zinc plated and stainless steelInstallation NotesPress receptacle flush to frameNotesReceptacle shown installed flush to the frame. To eliminate the gap between the frame and outer panel, install to a depth ≥ the thickness of the selected retainer. This depth should be added to the TMT.Press-In Ø Pilot15(.590)Locking stops16.6(.655)Retainer17.5(.69)Min.Outer panelØ 15.10(.594+0.07-0.00+.003-.000 )Solid install2.00(.080)Min.Ø 15.10 (.594 ) +0.07-0.00+.003-.000RetainerOuter panelBlind installwww.southco.com/85Material and FinishSteel, zinc plated and stainless steelInstallation NotesFor use in low carbon steels, aluminum and stainless steels in the annealed condition that are RB85 or softer. See page 627 for installation guidelinesInstallation ToolPart number: 90-2825-11Part NumberSee tableNotesUtilize stud selection column indicated when choosing a stud length from the stud length table on page 445Shielded – Self-ClinchingØ 16.3(.64)19.1(.75)Two orientation dimples.Wing or slot of stud will be 90º from thesedimples when fastener is lockedØ 14.2 (.560)1(.04)TMT = P + Gap - 0.6 (.025)(when gap is > retainer thickness)TMT = P + (Retainer adjustment value) - 0.6 (.025)TMTTMTP PEdge of hole must besharp on this side.Do not chamferInstalled height18.1±0.1(.713±.005)Ø 14.30(.562+0.05-0.03+.003-.000 )0.90 (.037)Min. framethicknessFrame thickness (F) > 0.9 (.036) + Retainer thickness: TMT = P + F Frame thickness (F) ≥ 0.9 (.036) + Retainer thickness:TMT = P + 0.9 (.036) + Retainer thickness F FPPTMT TMTTMT = P + F (when gap is > retainer thickness)GapPart NumberSee tableNotesUtilize stud selection column indicated when choosing a stud length from the stud length table on page 445Part Number Stud Selection Column 85-35-308-55 APart Number Stud Selection Column 85-35-311-55 BSolid Install Blind InstallD1D4D5D7NY82D8D985
