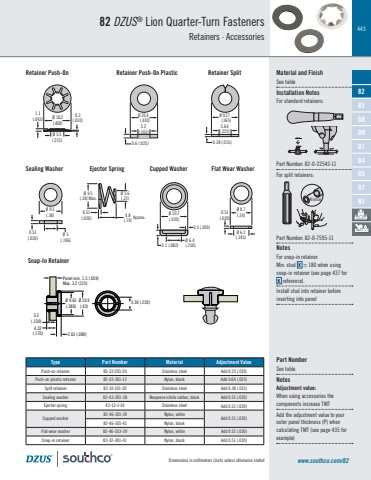

443Dimensions in millimeters (inch) unless otherwise stated www.southco.com/82Material and FinishSee table Installation NotesFor standard retainers: Part Number: 82-0-22542-11For split retainers:AlinharAlinharPart Number: 82-0-7595-11NotesFor snap-in retainer:Min. stud K = 180 when using snap-in retainer (see page 437 for K reference).Install stud into retainer before inserting into panel82 DZUS® Lion Quarter-Turn FastenersRetainers · AccessoriesØ 10.2(.400)0.3(.010)1.1(.043)Ø 5.5(.215)10.4(.410)5.2(.203)0.6 (.025)Ø 9.27(.365)5.64(.222)0.38 (.015)ØRetainerØ 9.5(.38)Ø 5(.196)0.51(.020)Ø 5.6(.22)Ø 9.5(.38) Max.0.51(.020) 4.8(.19) Approx.RetainerCuppedwear washerFlatwearwasherRetainer2.1 (.082)Ø 6.4 (.250)Ø 10.7(.420)0.5 (.020)Ø 8.7 (.34)Ø 6.2 (.245)0.51 (.020)Type Part Number Material Adjustment ValuePush-on retainer 82-32-201-20 Stainless steel Add 0.25 (.010)Push-on plastic retainer 82-32-301-12 Nylon, black Add 0.64 (.025)Split retainer 82-32-101-20 Stainless steel Add 0.38 (.015)Sealing washer 82-43-201-38 Neoprene nitrile rubber, black Add 0.51 (.020)Ejector spring 43-13-1-24 Stainless steel Add 0.51 (.020)Cupped washer82-46-101-39 Nylon, whiteAdd 0.51 (.020)82-46-101-41 Nylon, blackFlat wear washer 82-46-103-39 Nylon, white Add 0.51 (.020)Snap-in retainer 82-32-401-41 Nylon, black Add 0.51 (.020)Snap-In Retainer Ø 9.65 (.380)Ø 10.9(.43)3.3(.130)4.32(.170) 2.03 (.080)5.59 (.220)Panel min. 1.5 (.059)Max. 3.2 (125)Retainer Push-On Retainer Push-On Plastic Retainer Split Sealing Washer Ejector Spring Cupped Washer Flat Wear WasherPart NumberSee tableNotesAdjustment value:When using accessories the components increase TMT Add the adjustment value to your outer panel thickness (P) when calculating TMT (see page 435 for example)D1D4D5D7NY82D8D985
