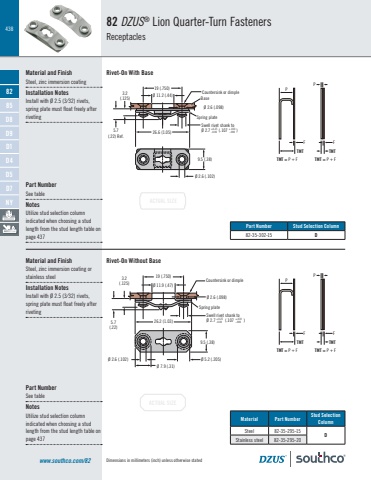

438Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZEACTUAL SIZEwww.southco.com/828285D8D9D1D4D5D7NYMaterial and FinishSteel, zinc immersion coating Installation NotesInstall with Ø 2.5 (3⁄32) rivets, spring plate must float freely after riveting82 DZUS® Lion Quarter-Turn FastenersReceptaclesRivet-On With BaseØ 11.2 (.44)19 (.750) Countersink or dimpleØ 2.6 (.098)9.5 (.38)26.6 (1.05) 5.7(.22) Ref.3.2(.125)Ø 2.6 (.102)Swell rivet shank to Ø 2.7 (.107 ) +.010-.000 +0.25-0.00BaseSpring plateMaterial and FinishSteel, zinc immersion coating or stainless steel Installation NotesInstall with Ø 2.5 (3⁄32) rivets, spring plate must float freely after rivetingTMT = P + F F FPPTMT TMTTMT = P + F Rivet-On Without BaseØ 11.9 (.47)19 (.750)Countersink or dimpleØ 2.6 (.098)Swell rivet shank toØ 2.7 (.107 )9.5 (.38)5.7 26.2 (1.03)(.22)3.2(.125)Ø 2.6 (.102) Ø 5.2 (.205)Ø 7.9 (.31)+.010-.000+0.25-0.00Spring plateTMT = P + F F FPPTMT TMTTMT = P + F Material Part Number Stud Selection Column Steel 82-35-295-15DStainless steel 82-35-295-20Part NumberSee tableNotesUtilize stud selection column indicated when choosing a stud length from the stud length table on page 437Part Number Stud Selection Column 82-35-302-15 DPart NumberSee tableNotesUtilize stud selection column indicated when choosing a stud length from the stud length table on page 437
