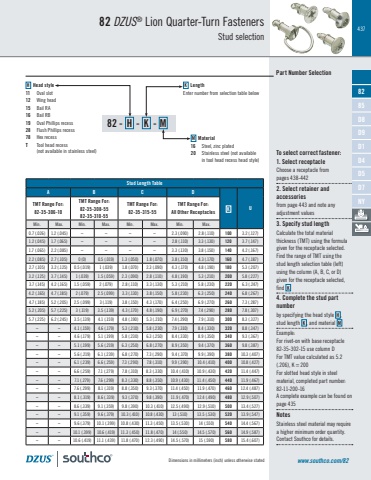

437Dimensions in millimeters (inch) unless otherwise stated82 DZUS® Lion Quarter-Turn FastenersStud selectionTo select correct fastener:1. Select receptacleChoose a receptacle frompages 438-4422. Select retainer andaccessoriesfrom page 443 and note anyadjustment values3. Specify stud lengthCalculate the total materialthickness (TMT) using the formulagiven for the receptacle selected.Find the range of TMT using thestud length selection table (left)using the column (A, B, C, or D)given for the receptacle selected,find K4. Complete the stud partnumberby specifying the head style H , stud length K , and material MExample:For rivet-on with base receptacle82-35-302-15 use column DFor TMT value calculated as 5.2(.206), K = 200For slotted head style in steelmaterial, completed part number:82-11-200-16A complete example can be found onpage 435NotesStainless steel material may require a higher minimum order quantity. Contact Southco for details.Stud Length TableA B C DK U TMT Range For:82-35-306-10TMT Range For:82-35-308-55 82-35-310-55TMT Range For:82-35-315-55TMT Range For:All Other ReceptaclesMin. Max. Min. Max. Min. Max. Min. Max.0.7 (.026) 1.2 (.045) ~ ~ ~ ~ 2.3 (.090) 2.8 (.110) 100 3.2 (.127)1.2 (.045) 1.7 (.065) ~ ~ ~ ~ 2.8 (.110) 3.3 (.130) 120 3.7 (.147)1.7 (.065) 2.2 (.085) ~ ~ ~ ~ 3.3 (.130) 3.8 (.150) 140 4.2 (.167)2.2 (.085) 2.7 (.105) 0 (0) 0.5 (.019) 1.3 (.050) 1.8 (.070) 3.8 (.150) 4.3 (.170) 160 4.7 (.187)2.7 (.105) 3.2 (.125) 0.5 (.019) 1 (.039) 1.8 (.070) 2.3 (.090) 4.3 (.170) 4.8 (.190) 180 5.3 (.207)3.2 (.125) 3.7 (.145) 1 (.039) 1.5 (.059) 2.3 (.090) 2.8 (.110) 4.8 (.190) 5.3 (.210) 200 5.8 (.227)3.7 (.145) 4.2 (.165) 1.5 (.059) 2 (.079) 2.8 (.110) 3.3 (.130) 5.3 (.210) 5.8 (.230) 220 6.3 (.247)4.2 (.165) 4.7 (.185) 2 (.079) 2.5 (.099) 3.3 (.130) 3.8 (.150) 5.8 (.230) 6.3 (.250) 240 6.8 (.267)4.7 (.185) 5.2 (.205) 2.5 (.099) 3 (.119) 3.8 (.150) 4.3 (.170) 6.4 (.250) 6.9 (.270) 260 7.3 (.287)5.2 (.205) 5.7 (.225) 3 (.119) 3.5 (.139) 4.3 (.170) 4.8 (.190) 6.9 (.270) 7.4 (.290) 280 7.8 (.307)5.7 (.225) 6.2 (.245) 3.5 (.139) 4.1 (.159) 4.8 (.190) 5.3 (.210) 7.4 (.290) 7.9 (.310) 300 8.3 (.327)~ ~ 4.1 (.159) 4.6 (.179) 5.3 (.210) 5.8 (.230) 7.9 (.310) 8.4 (.330) 320 8.8 (.347)~ ~ 4.6 (.179) 5.1 (.199) 5.8 (.230) 6.3 (.250) 8.4 (.330) 8.9 (.350) 340 9.3 (.367)~ ~ 5.1 (.199) 5.6 (.219) 6.3 (.250) 6.8 (.270) 8.9 (.350) 9.4 (.370) 360 9.8 (.387)~ ~ 5.6 (.219) 6.1 (.239) 6.8 (.270) 7.3 (.290) 9.4 (.370) 9.9 (.390) 380 10.3 (.407)~ ~ 6.1 (.239) 6.6 (.259) 7.3 (.290) 7.8 (.310) 9.9 (.390) 10.4 (.410) 400 10.8 (.427)~ ~ 6.6 (.259) 7.1 (.279) 7.8 (.310) 8.3 (.330) 10.4 (.410) 10.9 (.430) 420 11.4 (.447)~ ~ 7.1 (.279) 7.6 (.299) 8.3 (.330) 8.8 (.350) 10.9 (.430) 11.4 (.450) 440 11.9 (.467)~ ~ 7.6 (.299) 8.1 (.319) 8.8 (.350) 9.3 (.370) 11.4 (.450) 11.9 (.470) 460 12.4 (.487)~ ~ 8.1 (.319) 8.6 (.339) 9.3 (.370) 9.8 (.390) 11.9 (.470) 12.4 (.490) 480 12.9 (.507)~ ~ 8.6 (.339) 9.1 (.359) 9.8 (.390) 10.3 (.410) 12.5 (.490) 12.9 (.510) 500 13.4 (.527)~ ~ 9.1 (.359) 9.6 (.379) 10.3 (.410) 10.8 (.430) 13 (.510) 13.5 (.530) 520 13.9 (.547)~ ~ 9.6 (.379) 10.1 (.399) 10.8 (.430) 11.3 (.450) 13.5 (.530) 14 (.550) 540 14.4 (.567)~ ~ 10.1 (.399) 10.6 (.419) 11.3 (.450) 11.8 (.470) 14 (.550) 14.5 (.570) 560 14.9 (.587)~ ~ 10.6 (.419) 11.1 (.439) 11.8 (.470) 12.3 (.490) 14.5 (.570) 15 (.590) 580 15.4 (.607)www.southco.com/8282 - H - K - MH Head style11 Oval slot12 Wing head15 Bail RA16 Bail RB19 Oval Phillips recess28 Flush Phillips recess78 Hex recessT Tool head recess(not available in stainless steel)M Material16 Steel, zinc plated20 Stainless steel (not available in tool head recess head style)K LengthEnter number from selection table belowPart Number SelectionD1D4D5D7NY82D8D985
