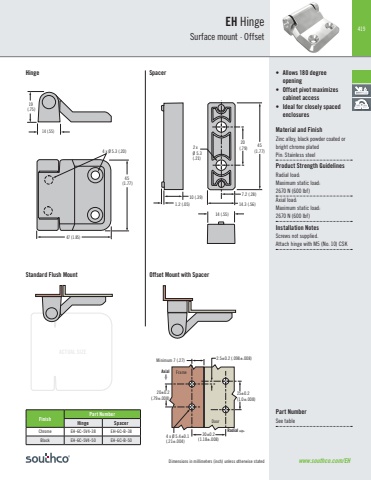

419ACTUAL SIZEFinishPart NumberHinge SpacerChrome EH-6C-5V4-38 EH-6C-B-38Black EH-6C-5V4-50 EH-6C-B-50Dimensions in millimeters (inch) unless otherwise stated www.southco.com/EHPart NumberSee tableEH HingeSurface mount · Offset • Allows 180 degree opening• Offset pivot maximizes cabinet access• Ideal for closely spaced enclosuresMaterial and FinishZinc alloy, black powder coated or bright chrome platedPin: Stainless steelProduct Strength GuidelinesRadial load:Maximum static load:2670 N (600 lbf)Axial load:Maximum static load:2670 N (600 lbf)Installation NotesScrews not supplied. Attach hinge with M5 (No. 10) CSK14 (.55) 19 (.75)4 x Ø 5.3 (.20)47 (1.85)45 (1.77)20 (.79) 45(1.77) 2 x Ø 5.3 (.21)10 (.39) 1.2 (.05)7.2 (.28)14.3 (.56)14 (.55)30±0.2(1.18±.008)2.5±0.2 (.098±.008)DoorFrame25±0.2(1.0±.008)4 x Ø 5.4±0.1(.21±.004)20±0.2(.79±.008)Minimum 7 (.27)AxialRadialStandard Flush Mount Offset Mount with SpacerHinge Spacer
