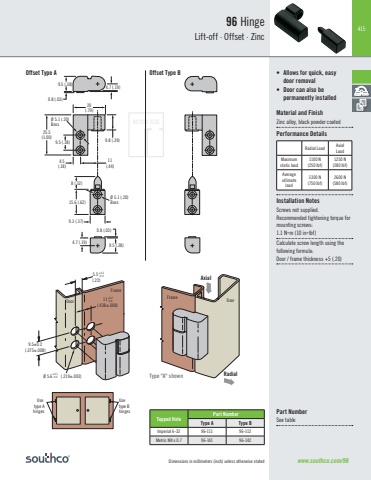

415ACTUAL SIZETapped HolePart NumberType A Type BImperial 6-32 96-111 96-112Metric M4 x 0.7 96-141 96-142Dimensions in millimeters (inch) unless otherwise stated www.southco.com/9696 HingeLift-off · Offset · Zinc• Allows for quick, easy door removal• Door can also be permanently installedMaterial and FinishZinc alloy, black powder coatedPerformance DetailsInstallation NotesScrews not supplied. Recommended tightening torque for mounting screws: 1.1 Nm (10 inlbf) Calculate screw length using the following formula: Door / frame thickness +5 (.20) 25.5(1.00) 9.8 (.39)Ø 5.1 (.20)15.6 (.62) Boss9.5 (.38)4.5(.18)Ø 5.1 (.20) Boss 0.8 (.03)9.5 (.38) 4.7 (.19)11(.44)4.7 (.19) 9.5 (.38)0.8 (.03)9.3 (.37)8 (.32)20(.79)AxialRadialFrame Door9.5±0.2(.375±.008)5.5 (.22)Frame+0.2-0.011 (.438±.008)+0.2-0.0Ø 5.6 (.219±.003) +0.1-0.0DoorUse type AhingesUse type BhingesOffset Type AType \Offset Type BPart NumberSee tableRadial Load AxialLoadMaximum static load1100 N(250 lbf)1250 N(280 lbf)Average ultimate load3300 N(750 lbf)2600 N(580 lbf)
