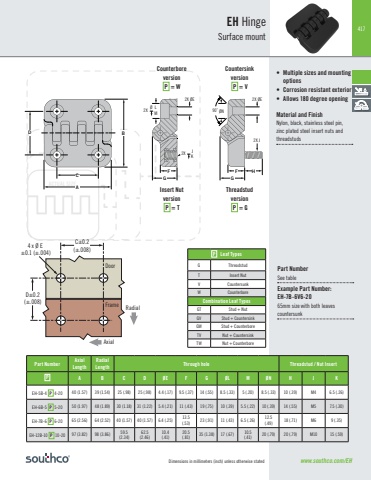

417ACTUAL SIZEPart Number Axial LengthRadial Length Through hole Threadstud / Nut InsertP A B C D ØE F G ØL M ØN H J KEH-5B-4 P 4-20 40 (1.57) 39 (1.54) 25 (.98) 25 (.98) 4.4 (.17) 9.5 (.37) 14 (.55) 8.5 (.33) 5 (.20) 8.5 (.33) 10 (.39) M4 6.5 (.26)EH-6B-5 P 5-20 50 (1.97) 48 (1.89) 30 (1.18) 31 (1.22) 5.4 (.21) 11 (.43) 19 (.75) 10 (.39) 5.5 (.22) 10 (.39) 14 (.55) M5 7.5 (.30)EH-7B-6 P 6-20 65 (2.56) 64 (2.52) 40 (1.57) 40 (1.57) 6.4 (.25) 13.5 (.53) 23 (.91) 11 (.43) 6.5 (.26) 12.5 (.49) 18 (.71) M6 9 (.35)EH-12B-10 P 10-20 97 (3.82) 98 (3.86) 59.5 (2.34)62.5 (2.46)10.4 (.41)20.5 (.81) 35 (1.38) 17 (.67) 10.5 (.41) 20 (.79) 20 (.79) M10 15 (.59)P Leaf TypesG ThreadstudT Insert NutV CountersunkW CounterboreCombination Leaf TypesGT Stud + NutGV Stud + CountersinkGW Stud + CounterboreTV Nut + CountersinkTW Nut + CounterboreDimensions in millimeters (inch) unless otherwise stated www.southco.com/EHPart NumberSee tableExample Part Number:EH-7B-6V6-2065mm size with both leaves countersunkEH HingeSurface mount • Multiple sizes and mounting options• Corrosion resistant exterior• Allows 180 degree openingMaterial and FinishNylon, black, stainless steel pin, zinc plated steel insert nuts and threadstudsCounterboreversionP = WCountersinkversionP = VInsert Nut versionP = TThreadstudversionP = G4 x Ø E ±0.1 (±.004)C±0.2(±.008)D±0.2(±.008)DoorFrame RadialAxialGF2X ØEJKØ LMGF H2X ØE2X J90˚ ØNACD B2X2X
