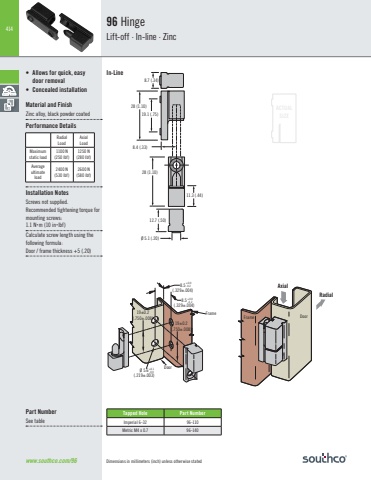

414ACTUALSIZETapped Hole Part NumberImperial 6-32 96-110Metric M4 x 0.7 96-140www.southco.com/96 Dimensions in millimeters (inch) unless otherwise stated• Allows for quick, easy door removal• Concealed installationMaterial and FinishZinc alloy, black powder coatedPerformance DetailsInstallation NotesScrews not supplied. Recommended tightening torque for mounting screws: 1.1 Nm (10 inlbf) Calculate screw length using the following formula: Door / frame thickness +5 (.20) 96 HingeLift-off · In-line · Zinc28 (1.10)19.1 (.75)28 (1.10)11.3 (.44)8.4 (.33)8.7 (.34)Ø 5.1 (.20)12.7 (.50)Frame DoorAxialRadial8.5(.329±.004)19±0.2(.750±.008)DoorFrame19±0.2(.750±.008)+0.0-0.2+0.1-0.08.5(.329±.004)+0.0-0.2Ø 5.6(.219±.003)In-LinePart NumberSee tableRadial LoadAxialLoadMaximum static load1100 N(250 lbf)1250 N(280 lbf)Average ultimate load2400 N(530 lbf)2600 N(580 lbf)
