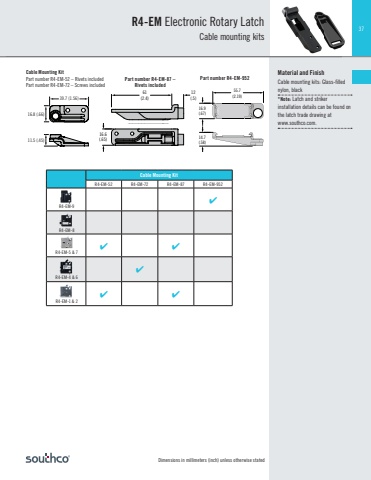

37Dimensions in millimeters (inch) unless otherwise stated39.7 (1.56)16.8 (.66)11.5 (.45)Cable Mounting KitPart number R4-EM-52 – Rivets includedPart number R4-EM-72 – Screws included39.7 (1.56)16.8 (.66)11.5 (.45)Cable Mounting KitR4-EM-52 R4-EM-72 R4-EM-87 R4-EM-952R4-EM-9R4-EM-8R4-EM-5 & 7 R4-EM-4 & 6R4-EM-1 & 2 16.6(.65)61(2.4)12(.5)55.7(2.19)16.9(.67)14.7(.58)Part number R4-EM-87 –Rivets includedPart number R4-EM-95216.6(.65)61(2.4)12(.5)55.7(2.19)16.9(.67)14.7(.58)R4-EM Electronic Rotary Latch Cable mounting kitsMaterial and FinishCable mounting kits: Glass-fi lled nylon, black*Note: Latch and striker installation details can be found on the latch trade drawing at www.southco.com.
