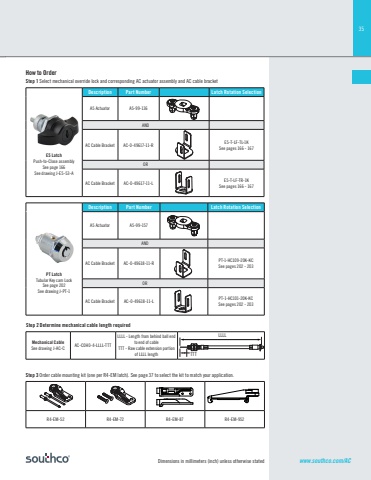

35Dimensions in millimeters (inch) unless otherwise statedMechanical CableSee drawing J-AC-C AC-C0H0-4-LLLL-TTTLLLL - Length from behind ball end to end of cableTTT - Raw cable extension portion of LLLL lengthLLLLTTTLLLLTTTR4-EM-52 R4-EM-72 R4-EM-87 R4-EM-952How to OrderStep 1 Select mechanical override lock and corresponding AC actuator assembly and AC cable bracketStep 2 Determine mechanical cable length requiredStep 3 Order cable mounting kit (one per R4-EM latch). See page 37 to select the kit to match your application.Description Part Number Latch Rotation SelectionE5 Latch Push-to-Close assemblySee page 166See drawing J-E5-53-AA5 Actuator A5-99-136ANDAC Cable Bracket AC-0-49617-11-R E5-T-LF-TL-1KSee pages 166 - 167ORAC Cable Bracket AC-0-49617-11-L E5-T-LF-TR-1KSee pages 166 - 167LLLLTTTLLLLTTTLLLLTTTLLLLTTTDescription Part Number Latch Rotation SelectionPT LatchTubular Key cam LockSee page 202See drawing J-PT-1A5 Actuator A5-99-157ANDAC Cable Bracket AC-0-49618-11-R PT-1-HC109-20K-KCSee pages 202 - 203ORAC Cable Bracket AC-0-49618-11-L PT-1-HC101-20K-KCSee pages 202 - 203LLLLTTTLLLLTTTLLLLTTTwww.southco.com/AC
