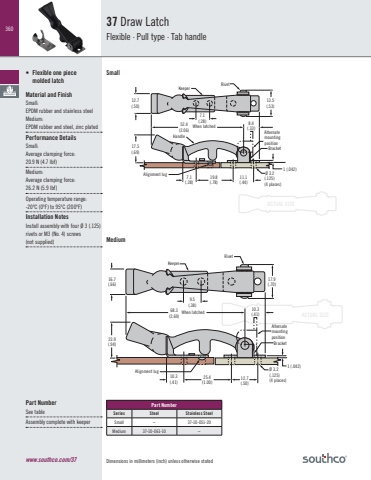

360ACTUAL SIZEACTUAL SIZEDimensions in millimeters (inch) unless otherwise stated• Flexible one piece molded latchMaterial and FinishSmall: EPDM rubber and stainless steelMedium: EPDM rubber and steel, zinc platedPerformance Details Small:Average clamping force: 20.9 N (4.7 lbf)Medium:Average clamping force: 26.2 N (5.9 lbf)Operating temperature range:-20ºC (0ºF) to 95ºC (200ºF)Installation NotesInstall assembly with four Ø 3 (.125)rivets or M3 (No. 4) screws (not supplied)37 Draw LatchFlexible · Pull type · Tab handlePart NumberSeries Steel Stainless SteelSmall ~ 37-10-051-20Medium 37-10-061-10 ~Part NumberSee tableAssembly complete with keeper7.1(.28)19.8(.78)11.1(.44)17.5(.69)12.7(.50)HandleWhen latchedKeeperRivetBracketAlternatemountingposition7.1(.28)13.5(.53) Ø 3.2(.125)(4 places)Alignment lug8.4(.33)52.4(2.06)1 (.042)SmallMediumKeeperRivet16.7(.66)23.9(.94)Alignment lugWhen latched9.5(.38) 10.3(.41)17.9(.70)25.4(1.00)10.3(.41)12.7(.50)AlternatemountingpositionBracketØ 3.2(.125)(4 places)68.3(2.69)1 (.042)www.southco.com/37
