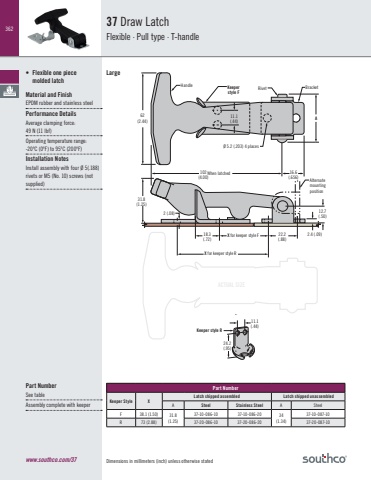

362ACTUAL SIZEDimensions in millimeters (inch) unless otherwise stated• Flexible one piece molded latchMaterial and FinishEPDM rubber and stainless steelPerformance DetailsAverage clamping force: 49 N (11 lbf)Operating temperature range: -20ºC (0ºF) to 95ºC (200ºF)Installation NotesInstall assembly with four Ø 5(.188)rivets or M5 (No. 10) screws (not supplied)37 Draw LatchFlexible · Pull type · T-handlePart NumberSee tableAssembly complete with keeperPart NumberKeeper Style XLatch shipped assembled Latch shipped unassembledA Steel Stainless Steel A SteelF 38.1 (1.50) 31.8 (1.25)37-10-086-10 37-10-086-20 34 (1.34)37-10-087-10R 73 (2.88) 37-20-086-10 37-20-086-20 37-20-087-1011.1(.44) AAlternatemountingposition2.4 (.09)12.7(.50)22.2(.88)18.3(.72)31.8(1.25)Ø 5.2 (.203) 4 placesKeeper Rivet Bracketstyle FHandle62(2.44)When latched 16.6(.656)2 (.08)102(4.00)X for keeper style FX for keeper style RBase/lidseparationline11.1(.44)57.2(2.25)24.2(.95)Keeper style Rwww.southco.com/37Large
