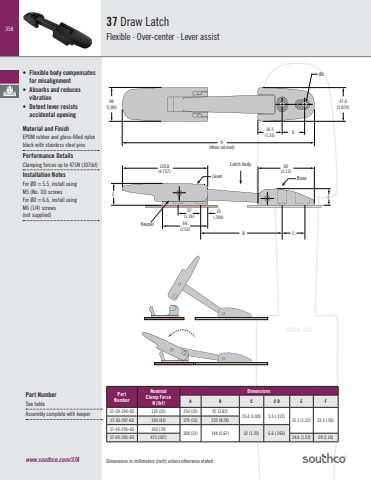

358Dimensions in millimeters (inch) unless otherwise stated37 Draw LatchFlexible · Over-center · Lever assist• Flexible body compensates for misalignment• Absorbs and reduces vibration• Detent lever resists accidental openingMaterial and FinishEPDM rubber and glass-filled nylon black with stainless steel pins Performance Details Clamping forces up to 475N (107lbf)Installation NotesFor ØD = 5.5, install using M5 (No. 10) screwsFor ØD = 6.6, install using M6 (1/4) screws(not supplied)Part NumberSee tableAssembly complete with keeperPart NumberNominal Clamp Force N (lbf)DimensionsA B C Ø D E F37-30-294-60 110 (25) 254 (10) 97 (3.82)25.4 (1.00) 5.5 (.217)37-30-297-60 190 (43) 379 (15) 222 (8.74) 31.1 (1.22) 23.5 (.93)37-40-295-60 350 (79)300 (12) 144 (5.67) 32 (1.25) 6.6 (.260)37-40-305-60 475 (107) 38.6 (1.52) 29 (1.14)www.southco.com/37AACTUAL SIZE48(1.89)34.3(1.35) G47.6(1.874)ØDE120.8(4.757)64(2.52) B C32(1.26)10(.394)80(3.15)FA(When latched)Latch bodyBase LeverKeeper4834.348E1216432 1080FØDACB
