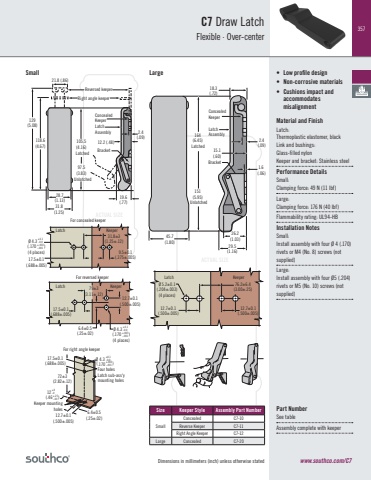

357ACTUAL SIZEACTUAL SIZEDimensions in millimeters (inch) unless otherwise statedC7 Draw LatchFlexible · Over-center• Low profile design• Non-corrosive materials• Cushions impact and accommodates misalignmentMaterial and FinishLatch: Thermoplastic elastomer, blackLink and bushings: Glass-filled nylonKeeper and bracket: Stainless steel Performance Details Small: Clamping force: 49 N (11 lbf)Large:Clamping force: 176 N (40 lbf)Flammability rating: UL94-HBInstallation NotesSmall: Install assembly with four Ø 4 (.170) rivets or M4 (No. 8) screws (not supplied)Large: Install assembly with four Ø5 (.204) rivets or M5 (No. 10) screws (not supplied) Part NumberSee tableAssembly complete with keeperSize Keeper Style Assembly Part NumberSmallConcealed C7-10Reverse Keeper C7-11Right Angle Keeper C7-12Large Concealed C7-20105.5(4.16)Latched97.5(3.83)UnlatchedConcealed Keeper2.4(.09)19.6(.77)28.7(1.13)31.8(1.25)118.6(4.67)129(5.08)Reversed keeper Right angle keeper 21.8 (.86)Bracket12.2 (.48)LatchAssembly 164(6.45)Latched151(5.95)UnlatchedLatchAssembly18.3(.72)Bracket26.2(1.03)29.5(1.16)45.7(1.80)1.6 (.06)2.4(.09)15.1(.60)ConcealedKeeperSmall LargeLatch Keeper31.8±3(1.25±.12)9.5±0.1(.375±.005) 17.5±0.1(.688±.005)For concealed keeperØ 4.3 (.170 )(4 places)+.003-.001+0.1-0.0Latch Keeper12.7±0.1(.500±.005)17.5±0.1(.688±.005)6.4±0.5(.25±.02)79±3(3.11±.12)For reversed keeperØ 4.3 (.170 )(4 places)+.003-.001+0.1-0.0Latch KeeperØ 5.2±0.1(.204±.003)(4 places)12.7±0.1(.500±.005)76.2±6.4(3.00±.25)12.7±0.1(.500±.005)17.5±0.1(.688±.005)72±3(2.82±.12)Keeper mountingholes 4.3.17012.7±0.1(.500±.005)6.4±0.5(.25±.02)Four holesLatch sub-ass'ymounting holesØFor right angle keeper+0.1-0.0+.003-.001 ( )12(.46+6-0+.25-.00 )www.southco.com/C7
