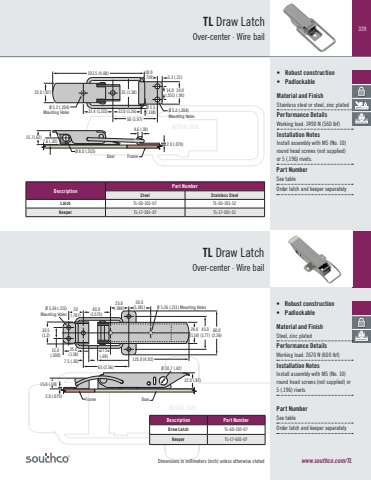

339ACTUAL SIZEACTUAL SIZE Part NumberSee tableOrder latch and keeper separatelyPart NumberSee tableOrder latch and keeper separatelyDimensions in millimeters (inch) unless otherwise stated• Robust construction• PadlockableMaterial and FinishStainless steel or steel, zinc platedPerformance DetailsWorking load: 2490 N (560 lbf)Installation NotesInstall assembly with M5 (No. 10)round head screws (not supplied) or 5 (.196) rivets.TL Draw LatchOver-center · Wire bailwww.southco.com/TL4.6 (.18)2.0 (.079)14.0(.551)24.0(.94)18.0(.709) 5.3 (.21)Ø 5.2 (.204)Mounting Holes103.5 (4.08)22.0 (.87)Ø 5.2 (.204)Mounting Holes 33.4 (1.315) 32.0 (1.26)35 (1.38)15.7(.62) 7.6 (.30)Ø 8.0 (.315)Ø 3.5(.138)Door Frame50 (1.97)DescriptionPart NumberSteel Stainless SteelLatch TL-50-201-07 TL-50-201-52Keeper TL-17-501-07 TL-17-501-52TL Draw LatchOver-center · Wire bail 15.0 (.59)29.0(1.14)45.0(1.77)60.0(2.36)125.0 (4.92)22.0 (.87)15.0(.590)30.5(1.2)20(.787)40.0(1.575)25.0(.984)30.0(1.181)35.0(1.38)17.5(.69)Ø 5.36 (.211) Mounting HolesØ 10.7 (.42)Ø 5.36 (.211)Mounting Holes2.0 (.079)7.5 (.30)Frame Door65 (2.56)Description Part NumberDraw Latch TL-60-102-07Keeper TL-17-601-07• Robust construction• PadlockableMaterial and FinishSteel, zinc platedPerformance DetailsWorking load: 2670 N (600 lbf)Installation NotesInstall assembly with M5 (No. 10)round head screws (not supplied) or 5 (.196) rivets
