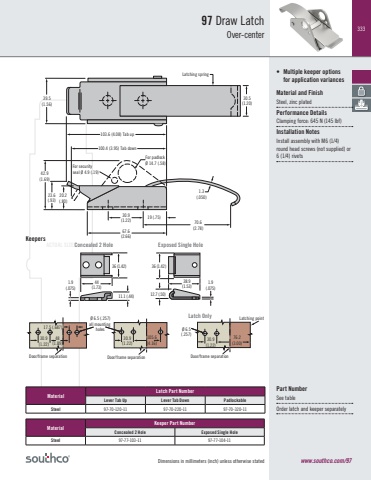

333ACTUAL SIZEDimensions in millimeters (inch) unless otherwise stated97 Draw LatchOver-center www.southco.com/97Part NumberSee tableOrder latch and keeper separately• Multiple keeper options for application variancesMaterial and FinishSteel, zinc platedPerformance DetailsClamping force: 645 N (145 lbf)Installation NotesInstall assembly with M6 (1/4) round head screws (not supplied) or 6 (1/4) rivetsMaterial Keeper Part NumberConcealed 2 Hole Exposed Single HoleSteel 97-77-103-11 97-77-104-11Concealed 2 Hole Exposed Single Hole103.6 (4.08) Tab up100.4 (3.95) Tab down39.5(1.56)30.9(1.22) 19 (.75)67.6(2.66)70.6(2.78)1.3(.050) 20.2(.80)23.6(.93)42.9(1.69)30.5(1.20)For padlockØ 14.7 (.58) For securityseal Ø 4.9 (.19)Latching spring36 (1.42)44(1.73)1.9(.075)11.1 (.44)36 (1.42)38.9(1.53)12.7 (.50)1.9(.075)Ø 6.5 (.257)all mounting holes30.9(1.22)48(1.89)17.5 (.687)30.9(1.22)105.6(4.16)Door/frame separation Door/frame separationØ 6.5(.257)30.9(1.22)76.2(3.00)Door/frame separationLatching pointKeepersMaterialLatch Part NumberLever Tab Up Lever Tab Down PadlockableSteel 97-70-120-11 97-70-220-11 97-70-320-11Latch Only
