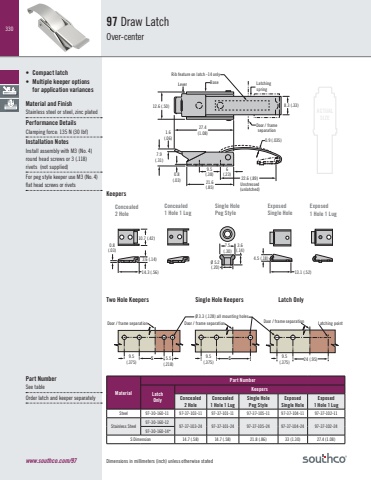

330ACTUALSIZEDimensions in millimeters (inch) unless otherwise stated• Compact latch• Multiple keeper options for application variancesMaterial and FinishStainless steel or steel, zinc platedPerformance DetailsClamping force: 135 N (30 lbf)Installation NotesInstall assembly with M3 (No. 4)round head screws or 3 (.118) rivets (not supplied)For peg style keeper use M3 (No. 4) flat head screws or rivets97 Draw LatchOver-center www.southco.com/97Part NumberSee tableOrder latch and keeper separatelyConcealed2 HoleConcealed1 Hole 1 LugSingle Hole Peg StyleExposed Single HoleMaterialPart NumberLatchOnlyKeepersConcealed2 HoleConcealed1 Hole 1 LugSingle Hole Peg StyleExposed Single HoleExposed 1 Hole 1 LugSteel 97-30-160-11 97-37-103-11 97-37-101-11 97-37-105-11 97-37-104-11 97-37-102-11Stainless Steel97-30-160-1297-37-103-24 97-37-101-24 97-37-105-24 97-37-104-24 97-37-102-2497-30-160-14*S Dimension 14.7 (.58) 14.7 (.58) 21.8 (.86) 33 (1.30) 27.4 (1.08)12.6 (.50)7.9(.31)1.6(.06)0.8(.03)9.5(.38)21.6(.85)6(.23) 22.6 (.89)Unstressed(unlatched)27.4(1.08)8.3 (.33)0.9 (.035)Lever Base LatchingspringRib feature on latch -14 onlyDoor / frameseparation10.7 (.42)14.3 (.56)0.8(.03)3.6 (.14)13.1 (.52)4.5 (.18)7.5(.30)Ø 5.2(.20)3.6(.14)Exposed 1 Hole 1 LugKeepersTwo Hole Keepers Single Hole Keepers Latch Only5.5(.218)S S 24 (.95)Ø 3.3 (.128) all mounting holesDoor / frame separation Latching point Door / frame separation Door / frame separation9.5(.375)9.5(.375)9.5(.375)
