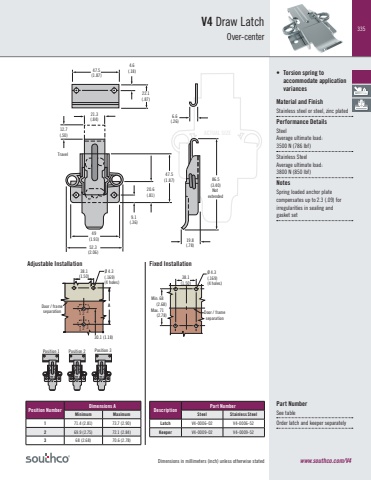

335ACTUAL SIZEDimensions in millimeters (inch) unless otherwise statedDescriptionPart NumberSteel Stainless SteelLatch V4-0006-02 V4-0006-52Keeper V4-0009-02 V4-0009-52V4 Draw LatchOver-center www.southco.com/V4Part NumberSee tableOrder latch and keeper separately• Torsion spring to accommodate application variancesMaterial and FinishStainless steel or steel, zinc platedPerformance DetailsSteelAverage ultimate load: 3500 N (786 lbf)Stainless SteelAverage ultimate load: 3800 N (850 lbf)NotesSpring loaded anchor plate compensates up to 2.3 (.09) for irregularities in sealing and gasket set22.1(.87)47.5(1.87)4.6(.18)21.3(.84)12.7(.50)47.5(1.87)9.1(.36)20.6(.81)86.5(3.40)Not extended49(1.93)52.3(2.06)19.8(.78)Travel6.6(.26)38.1(1.50)68(2.68)71(2.78)Min.Max. Door / frameseparationØ 4.3(.169)(4 holes)Fixed InstallationØ 4.3(.169)(4 holes)A1 2 31 2 338.1(1.50)30.1 (1.18)Door / frameseparationPosition 1 Position 2 Position 3Position NumberDimensions AMinimum Maximum1 71.4 (2.81) 73.7 (2.90)2 69.9 (2.75) 72.1 (2.84)3 68 (2.68) 70.6 (2.78)Adjustable Installation
