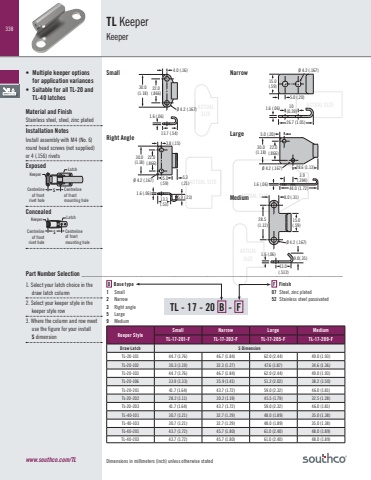

338ACTUALSIZEACTUAL SIZEACTUAL SIZEACTUAL SIZEACTUALSIZEDimensions in millimeters (inch) unless otherwise statedTL - 17 - 20 B - FTL KeeperKeeper• Multiple keeper options for application variances• Suitable for all TL-20 and TL-40 latchesMaterial and FinishStainless steel, steel, zinc platedInstallation NotesInstall assembly with M4 (No. 6)round head screws (not supplied) or 4 (.156) rivetsExposedConcealedwww.southco.com/TLSmall Narrow1. Select your latch choice in the draw latch column2. Select your keeper style in the keeper style row3. Where the column and row meet use the figure for your install S dimensionB Base type1 Small2 Narrow3 Right angle5 Large9 MediumF Finish07 Steel, zinc plated52 Stainless steel passivated22.0(.866)30.0(1.18)4.0 (.16)1.6 (.06) 13.7 (.54)Ø 4.2 (.167)Right Angle Large15.0(.59)1.6 (.06)5.0 (.20)10 (0.39)26.7 (1.05)Ø 4.2 (.167)22.0(.866)30.0(1.18)15.0(.59)13.3(.53)5.3(.21)5.9 (.23) 1.6 (.06)3.8 (.15) Ø 4.2 (.167)44.0 (1.72)28.6 (1.13)22.0(.866)30.0(1.18)1.6 (.06) 5.0 (.20) 3.9(.394)Ø 4.2 (.167)KeeperCentrelineof frontrivet holeCentrelineof frontmounting hole LatchSKeeperCentrelineof frontrivet holeCentreline of frontmounting hole LatchS15.0(.59)8.0 (.31)28.5 (1.12)13.0 (.512)9.0(.35)Ø 4.2 (.167)1.6 (.06)MediumKeeper StyleSmall Narrow Large MediumTL-17-201-F TL-17-202-F TL-17-205-F TL-17-209-FDraw Latch S DimensionTL-20-101 44.7 (1.76) 46.7 (1.84) 62.0 (2.44) 49.0 (1.93)TL-20-102 30.3 (1.19) 32.3 (1.27) 47.6 (1.87) 34.6 (1.36)TL-20-103 44.7 (1.76) 46.7 (1.84) 62.0 (2.44) 49.0 (1.93)TL-20-106 33.9 (1.33) 35.9 (1.41) 51.2 (2.02) 38.2 (1.50)TL-20-201 41.7 (1.64) 43.7 (1.72) 59.0 (2.32) 46.0 (1.81)TL-20-202 28.2 (1.11) 30.2 (1.19) 45.5 (1.79) 32.5 (1.28)TL-20-203 41.7 (1.64) 43.7 (1.72) 59.0 (2.32) 46.0 (1.81)TL-40-101 30.7 (1.21) 32.7 (1.29) 48.0 (1.89) 35.0 (1.38)TL-40-103 30.7 (1.21) 32.7 (1.29) 48.0 (1.89) 35.0 (1.38)TL-40-201 43.7 (1.72) 45.7 (1.80) 61.0 (2.40) 48.0 (1.89)TL-40-203 43.7 (1.72) 45.7 (1.80) 61.0 (2.40) 48.0 (1.89)Part Number Selection _______________________________________________________________________________
