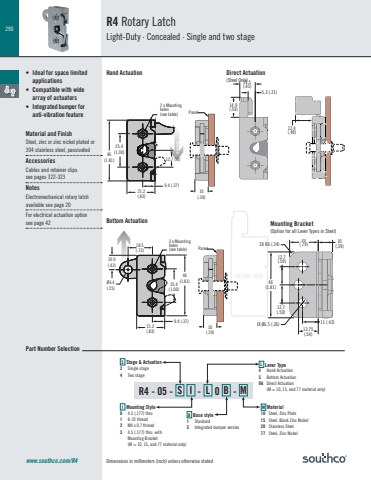

290Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZEwww.southco.com/R4R4 Rotary LatchLight-Duty · Concealed · Single and two stage• Ideal for space limited applications• Compatible with wide array of actuators• Integrated bumper for anti-vibration featureMaterial and FinishSteel, zinc or zinc nickel plated or304 stainless steel, passivatedAccessoriesCables and retainer clips see pages 322-323NotesElectromechanical rotary latch available see page 20 For electrical actuation optionsee page 42Hand ActuationR4 - 05 - S I - L 0 B - MS Stage & Actuation 2 Single stage4 Two stageL Lever Type 4 Hand Actuation5 Bottom Actuation9A Direct Actuation (M = 10, 15, and 77 material only)M Material 10 Steel, Zinc Plate15 Steel, Black Zinc Nickel20 Stainless Steel77 Steel, Zinc NickelB Base style 1 Standard5 Integrated bumper versionI Mounting Style0 4.5 (.177) thru1 8-32 thread2 M4 x 0.7 thread3 4.5 (.177) thru withMounting Bracket(M = 10, 15, and 77 material only)21.2 (.83)9.4 (.37)25.4 (1.00) 46(1.81) 12.7 (.5)10(.39)Panel2 x Mounting holes(see table)ReleaseBottom ActuationDirect Actuation(Steel Only)21.2 (.83)9.4 (.37)25.4 (1.00)46(1.81)10.9(.43)Ø6.4(.25)18.5(.73)10(.39)Panel2 x Mounting holes(see table)Part Number Selection12.7(.50)11 (.43)12.7(.50)13.75(.54)3X Ø6.5 (.26)46(1.81)2X R6 (.24) 10(.39)20(.79)12.4(.49)5.3 (.21)11.5(.45)14.9(.59)12.7(.50)11 (.43)12.7(.50)13.75(.54)3X Ø6.5 (.26)46(1.81)2X R6 (.24) 10(.39)20(.79)12.4(.49)5.3 (.21)11.5(.45)14.9(.59)Mounting Bracket(Option for all Lever Types in Steel)
