Page 309 - Demo
P. 309

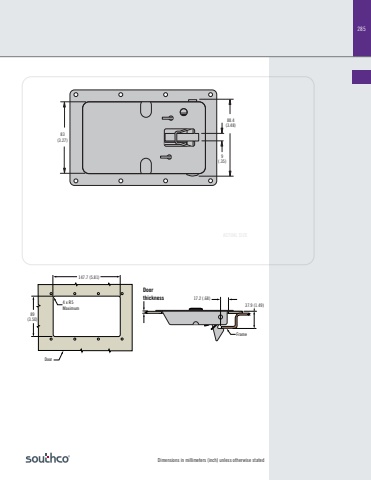

Dimensions in millimeters (inch) unless otherwise stated285ACTUAL SIZEFrame37.9 (1.49)17.2 (.68)Door thickness147.7 (5.81)89(3.50)Door4 x R5MaximumH83(3.27)88.4(3.48)9(.35)5.3 (.21)52(2.05)110(4.33)170 (6.7)7 (.28) 5 (.20)100(3.94)52(2.05)52(2.05)8 x Ø rivet mounting latches onlyAvailable with or without lock (see part number selection)
