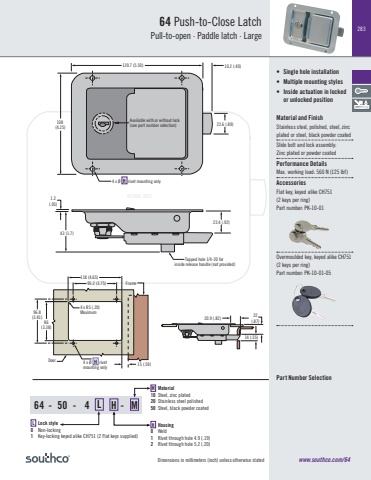

Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZE64 - 50 - 4 L H - Mwww.southco.com/6410.2 (.40)108 (4.25)139.7 (5.50)22.6 (.89)23.4 (.92)1.2(.05)43 (1.7) 4 x Ø rivet mounting only HAvailable with or without lock (see part number selection)Tapped hole 1/4-20 for inside release handle (not provided)Frame4 x R5 (.20)MaximumDoor96.8(3.81)86(3.38)118 (4.65)95.2 (3.75)20.9 (.82) 22(.87)14 (.55)15 (.59) 4 x Ø rivetmounting onlyH283Part Number Selection64 Push-to-Close LatchPull-to-open · Paddle latch · Large• Single hole installation• Multiple mounting styles • Inside actuation in locked or unlocked positionMaterial and FinishStainless steel, polished, steel, zinc plated or steel, black powder coatedSlide bolt and lock assembly:Zinc plated or powder coated Performance DetailsMax. working load: 560 N (125 lbf)AccessoriesFlat key, keyed alike CH751 (2 keys per ring)Part number: PK-10-01Overmoulded key, keyed alike CH751 (2 keys per ring)Part number: PK-10-01-05H Housing0 Weld1 Rivet through hole 4.9 (.19)2 Rivet through hole 5.2 (.20)L Lock style0 Non-locking1 Key-locking keyed alike CH751 (2 Flat keys supplied)M Material10 Steel, zinc plated 20 Stainless steel polished50 Steel, black powder coated
