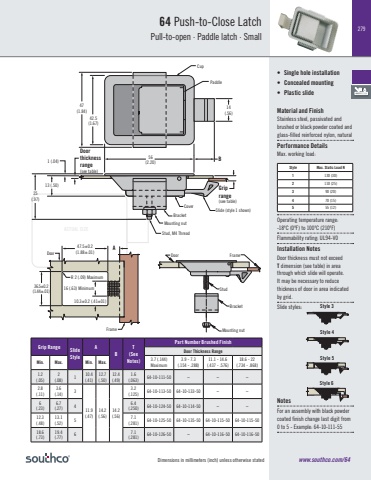

Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZEGrip Range Slide StyleABT (See Notes)Part Number Brushed FinishDoor Thickness RangeMin. Max. Min. Max. 3.7 (.144) Maximum3.9 - 7.3(.154 - .288)11.1 - 14.6(.437 - .576)18.6 - 22(.734 - .868)1.2 (.05)2(.08) 1 10.4(.41) 12.7 (.50)12.4 (.49)1.6(.063) 64-10-111-50 ~ ~ ~2.8 (.11)3.6(.14) 311.9 (.47)14.2(.56)14.2(.56)3.2(.125) 64-10-113-50 64-10-133-50 ~ ~6 (.23)6.7(.27) 4 6.4(.250) 64-10-124-50 64-10-114-50 ~ ~12.3 (.48)13.1(.52) 5 7.1(.281) 64-10-125-50 64-10-135-50 64-10-115-50 64-10-115-5018.6 (.73)19.4(.77) 6 7.1(.281) 64-10-126-50 ~ 64-10-116-50 64-10-116-5056(2.20)47(1.84)42.5(1.67)B14(.56)Cup25(.97)13 (.50)Doorthicknessrange(see table)Mounting nutStud, M4 ThreadBracketSlide (style 1 shown)Griprange(see table)1 (.04)CoverPaddle47.5±0.2(1.88±.01)A16 (.63) Minimum10.3±0.2 (.41±01)36.5±0.2(1.44±.01)DoorFrameR 2 (.09) Maximum Bracket Stud Mounting nut Door Frame 279www.southco.com/64• Single hole installation• Concealed mounting• Plastic slideMaterial and FinishStainless steel, passivated and brushed or black powder coated and glass-filled reinforced nylon, naturalPerformance DetailsMax. working load:Operating temperature range:-18ºC (0ºF) to 100ºC (210ºF)Flammability rating: UL94-V0Installation NotesDoor thickness must not exceed T dimension (see table) in area through which slide will operate.It may be necessary to reduce thickness of door in area indicated by grid.Slide styles:NotesFor an assembly with black powder coated finish change last digit from 0 to 5 - Example: 64-10-111-5564 Push-to-Close LatchPull-to-open · Paddle latch · Small Style 3Style 4Style 5Style 6Style Max. Static Load N1 130 (30)2 110 (25)3 90 (20)4 70 (15)5 55 (12)
