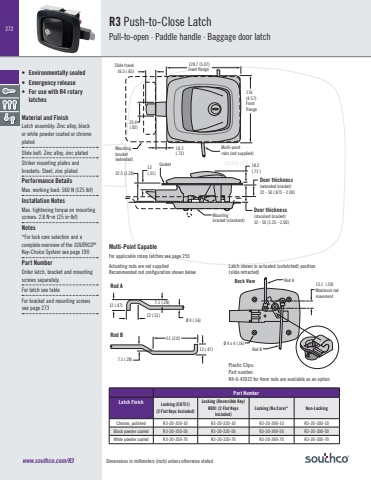

Dimensions in millimeters (inch) unless otherwise stated272www.southco.com/R3ACTUAL SIZEPart NumberLatch Finish Locking (CH751)(2 Flat Keys Included) Locking (Reversible Key)R001 (2 Flat Keys Included)Locking (No Core)* Non-LockingChrome, polished R3-20-350-10 R3-20-320-10 R3-20-390-10 R3-20-300-10Black powder coated R3-20-350-50 R3-20-320-50 R3-20-390-50 R3-20-300-50White powder coated R3-20-350-70 R3-20-320-70 R3-20-390-70 R3-20-300-70Mountingbracket (extended)Slide travel16.5 (.65)Door thickness(extended bracket)22 - 50 (.875 - 2.00) Door thickness(standard bracket)32 - 50 (1.25 - 2.00)Mountingbracket (standard)13(.51)18.2 (.72 )116 (4.57)Front flange128.7 (5.07)Front flange 23.4 (.92)Multi-pointrods (not supplied)32.5 (1.28)Gasket18.3 (.72)15.1 (.59)Maximum rod movementBack ViewØ 4 x 4 (.16)Rod BRod A51 (2.0)13 (.51)Ø 4 (.16)12 (.47)7.1 (.28)12 (.47) 7.1 (.28)Rod ARod BR3 Push-to-Close LatchPull-to-open · Paddle handle · Baggage door latchMulti-Point CapableActuating rods are not supplied Recommended rod configuration shown belowLatch shown in actuated (unlatched) position(slide retracted)Plastic Clips: Part number: R4-0-43922 for 4mm rods are available as an option• Environmentally sealed• Emergency release• For use with R4 rotary latchesMaterial and Finish Latch assembly: Zinc alloy, black or white powder coated or chrome platedSlide bolt: Zinc alloy, zinc platedStriker mounting plates and brackets: Steel, zinc platedPerformance DetailsMax. working load: 560 N (125 lbf)Installation NotesMax. tightening torque on mounting screws: 2.8 Nm (25 inlbf)Notes*For lock core selection and a complete overview of the SOUTHCO®Key-Choice System see page 190Part NumberOrder latch, bracket and mounting screws separately. For latch see tableFor bracket and mounting screws see page 273For applicable rotary latches see page 255
