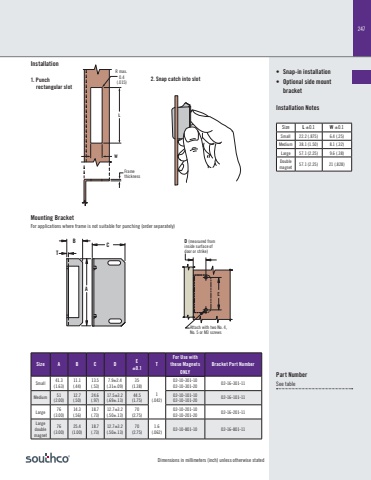

Dimensions in millimeters (inch) unless otherwise stated247Size A B C D E±0.1 TFor Use with these Magnets ONLYBracket Part Number Small 41.3(1.63)11.1(.44)13.5(.53)7.9±2.4(.31±.09)35(1.38)1(.042)02-10-301-1002-10-301-20 02-16-301-11Medium 51(2.00)12.7(.50)24.6(.97)17.5±3.2(.69±.13)44.5(1.75)02-10-101-1002-10-101-20 02-16-101-11Large 76(3.00)14.3(.56)18.7(.73)12.7±3.2(.50±.13)70(2.75)02-10-201-1002-10-201-20 02-16-201-11Large double magnet76(3.00)25.4(1.00)18.7(.73)12.7±3.2(.50±.13)70(2.75)1.6(.062) 02-10-801-10 02-16-801-11D (measured frominside surface ofdoor or strike)Attach with two No. 4, No. 5 or M3 screwsEB TC A LWFrame thicknessR max. 0.4(.015) 1. Punch rectangular slot2. Snap catch into slotMounting BracketFor applications where frame is not suitable for punching (order separately)Installation• Snap-in installation• Optional side mount bracketInstallation NotesPart NumberSee tableSize L ±0.1 W ±0.1Small 22.2 (.875) 6.4 (.25)Medium 38.1 (1.50) 8.1 (.32)Large 57.1 (2.25) 9.6 (.38)Double magnet 57.1 (2.25) 21 (.828)
