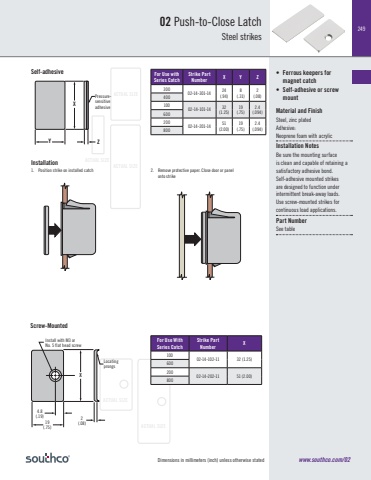

Dimensions in millimeters (inch) unless otherwise statedACTUAL SIZEACTUAL SIZEACTUAL SIZEACTUAL SIZEACTUAL SIZEXY ZPressuresensitiveadhesiveInstallation1. Position strike on installed catch 2. Remove protective paper. Close door or panel onto strikeFor Use with Series CatchStrike Part Number X Y Z30002-14-301-14 24(.94)8(.31)2(.08) 40010002-14-101-14 32(1.25)19(.75)2.4(.094) 60020002-14-201-14 51(2.00)19(.75)2.4(.094) 80019(.75)2(.08)X4.8(.19)LocatingprongsInstall with M3 or No. 5 flat head screwFor Use WithSeries CatchStrike Part Number X10002-14-102-11 32 (1.25)60020002-14-202-11 51 (2.00)800Self-adhesiveScrew-Mounted249www.southco.com/0202 Push-to-Close LatchSteel strikes• Ferrous keepers for magnet catch• Self-adhesive or screw mountMaterial and FinishSteel, zinc platedAdhesive: Neoprene foam with acrylicInstallation NotesBe sure the mounting surfaceis clean and capable of retaining asatisfactory adhesive bond.Self-adhesive mounted strikes are designed to function under intermittent break-away loads.Use screw-mounted strikes forcontinuous load applications.Part NumberSee table
