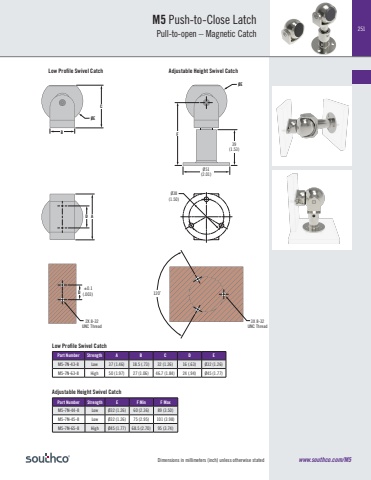

Dimensions in millimeters (inch) unless otherwise stated251www.southco.com/M5Low Profile Swivel Catch Adjustable Height Swivel CatchPart Number Strength A B C D EM5-7N-43-8 Low 37 (1.46) 18.5 (.73) 32 (1.26) 16 (.63) Ø32 (1.26)M5-7N-63-8 High 50 (1.97) 27 (1.06) 46.7 (1.84) 24 (.94) Ø45 (1.77)Low Profile Swivel CatchPart Number Strength E F Min F MaxM5-7N-44-8 Low Ø32 (1.26) 60 (2.36) 89 (3.50)M5-7N-45-8 Low Ø32 (1.26) 75 (2.95) 101 (3.98)M5-7N-65-8 High Ø45 (1.77) 68.5 (2.70) 95 (3.74)Adjustable Height Swivel Catch3X 8-32UNC Thread2X 8-32UNC ThreadM5 Push-to-Close Latch Pull-to-open – Magnetic CatchD ADØECØEB39(1.53)FØ51(2.01)Ø38(1.50)120˚ ±0.1(.003)
