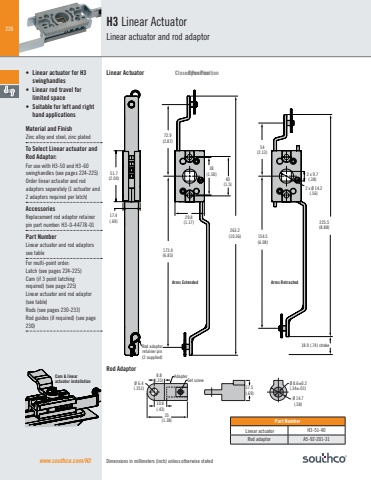

226Ø 6.4(.251)8.8(.35) AdapterSet screw10.8(.43)35(1.38)17.5 (.69)Ø 8.6±0.2(.34±.01)Ø 14.7(.58)51.7(2.04)17.4(.69)29.8(1.17)38(1.50)40(1.5)263.2(10.36)2 x 9.7(.38)225.5(8.88)2 x Ø 14.2(.56)Arms Extended Arms Retracted173.4(6.83)72.9(2.87)Rod adaptorretainer pin(2 supplied)154.5(6.08)54(2.13)18.9 (.74) strokePart NumberLinear actuator H3-51-40Rod adaptor A5-92-201-31www.southco.com/H3 Dimensions in millimeters (inch) unless otherwise statedHardware packCam & linear actuator installation 2 x M4x0.7x25,pan head No. 2 pozi driv, self tapping screws for gearbox installationM6x1x14cam screwLock plug endmounting bracketPivot end mounting bracketDummy cam used for no center point latching onlyM4x0.7x12, pan head, No.2 pozi drive, self tapping screw for lock plug bracket installWave washerH3 Linear ActuatorLinear actuator and rod adaptor• Linear actuator for H3 swinghandles • Linear rod travel forlimited space • Suitable for left and right hand applicationsMaterial and FinishZinc alloy and steel, zinc plated To Select Linear actuator and Rod Adaptor:For use with H3-50 and H3-60 swinghandles (see pages 224-225)Order linear actuator and rod adaptors separately (1 actuator and 2 adaptors required per latch)AccessoriesReplacement rod adaptor retainer pin part number: H3-0-44778-01Part Number Linear actuator and rod adaptors see tableFor multi-point order:Latch (see pages 224-225) Cam (if 3 point latching required) (see page 225) Linear actuator and rod adaptor (see table)Rods (see pages 230-233) Rod guides (if required) (see page 230) Linear Actuator Closed Position Open PositionRod Adaptor
